Cn70 Pneumatic Wire Collated Coil Nailer

$125.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: CN70
Usage: Paint Spray Gun, Washing Gun, Hopper Gun, Garden Gun, Wood Packing.Wood Pallet
Air Wrench Type: Pulse pneumatic wrench
Brand: Kya
Screwdriver Startup Mode: Under pressure
Customized: Customized
Load Capacity: 225-300PCS Nails
Fasteners Length: 45mm-70mm
Nails Head: 5.0mm-7.0mm
Business Type: Manufacturer and Trading Company
OEM Service: Available
Transport Package: as Customer Requirement.
Origin: China

Type: Coil Nail Gun
Working Style: Pneumatic
Pneumatic Drill Range: Construction Machinery
Degree of Automation: Semi-automatic
Condition: New
Weight: 3.67kgs
Operating Pressure: 70-120psi(5-8.5kgs/Cm2)
Shank: 2.3mm-2.9mm
Nail Pitch: 8.0mm
Export Markets: Global
Trademark: KYA
Specification: CE SGS
HS Code: 84671900

Product Description

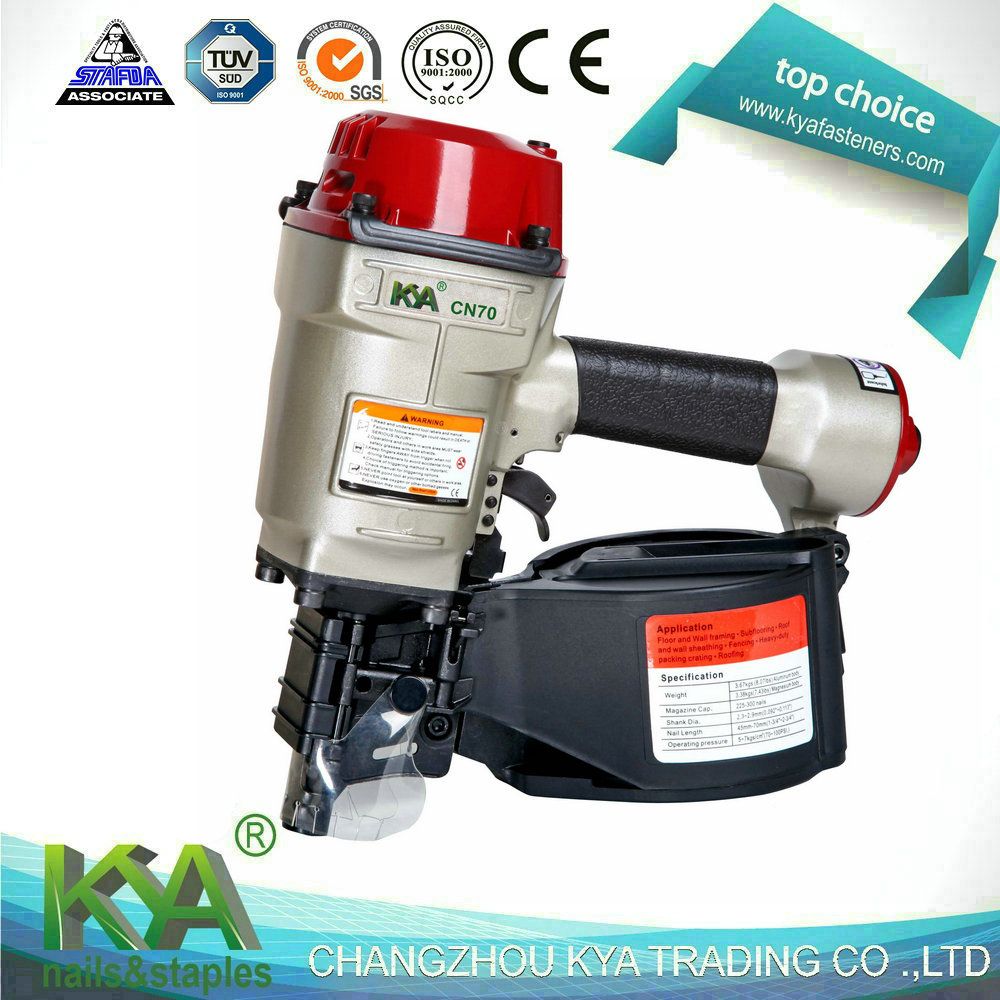

Cn70 Pneumatic Wire Collated Coil Nailer

Tool Specifications:

MODEL:	CN70 (Aluminum body)
FIRING METHOD:	Contact trip
FIRING MODE:	Bump fire
WEIGHT:	3.67kgs
DIMENSIONS:	315 x 128 x 306mm
OPERATING PRESSURE:	5-8.5kgs/cm2 (70-120psi )
Customized	Customized is available if you provide a drawing or sample
OEM Service	Available

Nail Specifications:

15° Flat wire welded coil nails
LENGTH:	45 - 70 mm
SHANK DIAMETER:	2.3 - 2.9 mm
HEAD:	5.0-7.0mm
SPACING:	8mm
SHANK TYPE:	Smooth, ring & screw

Packaging & Delivery:

Packaging Details:	According to your requirements
Delivery Detail:	7~30 days as per your quantity

Features:

   Ergonomic design, well balanced
   Extra heavy-duty, die cast aluminum construction
   Big load capacity
   Powerful, rapid nailing performance

Applications:

   Making and repairing pallets
   Crating
   Fencing
   General construction applications
Cn70 Pneumatic Wire Collated Coil Nailer

Cn70 Pneumatic Wire Collated Coil Nailer

Service and Repars:

No.	Symptom		Problems	Solutions
1.1	Air Leak	Air leak in the cylinder cap when tools don't work	1.Loose head valve piston seal or o-rings .	Check and replace the head valve piston set
1.1		Air leak in the cylinder cap when tools don't work	2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap	Check and replace o-ring or cylinder cap gasket under the cylinder cap
1.2		Air leak in Trigger area when tools don't work	1.Damaged o-ring in trigger valve	Check and replace o-ring
			2.Damaged o-ring in trigger valve stem	Check and replace o-ring
			3.Dirt in the trigger valve	Check and clean the trigger valve
1.3		Air leak in cylinder cap when tools are working	1.Damaged head valve piston o-rings	Check and replace o-rings
1.3		Air leak in cylinder cap when tools are working	2.Damaged seal under cylinder cap	Check and replace seal
1.4		Air leak in nose when tools are working	1.Worn or damaged bumper	Check and replace bumper
1.4		Air leak in nose when tools are working	2.Loose driver(piston unit) thread	Check and replace driver(piston unit)
1.5		Air leak in Trigger area when tools are working	1.Worn or damaged trigger valve head	Check and replace trigger valve head
1.5		Air leak in Trigger area when tools are working	2.Damaged head valve piston o-rings	Check and replace head valve piston o-rings
2	Failed to get driver(piston unit) back to the correct position completely.		1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled.	Straighten the driver(piston unit) or verify driver guide(nose) and magazine
			2.Worn or damaged nozzle	Check and replace nozzle
			3.The space between piston o-ring and cylinder is too tight.	Check if the cylinder is adequate lubrication or replace the o-ring on the piston.
3	Work weakly and sluggishly		1. Worn or damaged piston o-ring	Check and replace piston o-ring
			2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings	Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings
			3.Dirt in the nozzle	Check and clean the nozzle
4	Tool jams frequently		1.Damaged or Worn driver (piston unit)	Check and replace driver (piston unit)
			2.Damaged or Worn driver guide (nose)	Check and replace driver guide (nose)
			3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big	Check and replace driver guide cover
5	Nail can not be shot		1. Driver (piston unit) can't return to the correct position.	Refer to no. 1 Symptom
			2.Driver guide(nose) can not match magazine well	Check and correct the position between driver guide(nose) and magazine
			3.Worn or damaged nail pusher compression spring	Check and replace nail pusher compression spring

FAQ:

1.Q:Do you have your own production factory?
   A:Yes,we not only have our own factory,We also have a cooperative relationship with more than one hundred factories in China

2.Q: Can you send us samples?
   A: We are pleased to send you the sample to test the quality and market.

3.Q: About your products, could you do it OEM?
   A: Yes, OEM service is available.

4.Q: Do you also provide spare parts of pneumatic tools?
    A: Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you some easy-broken parts.

5.Q: For the product, could you spray other color of painting?
    A: Yes, color can be customized.

6.Q: What's the delivery time?
    A: It usually takes about 20-30 working days to produce one order.

7.Q: How is the payment terms?
    A: Normally T/T 30% in advance and T/T 70% before shipment.

8.Q: Can I mix different models in one container?
    A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

9.Q: How does your factory do regarding quality control?
      A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.

10.Q: Do you have quality certification?
      A: Yes, we have CE, SGS,ISO, ect.

Why choose KYA?

1.Short production time:Our company have established the strong partner-ship with over 100 factories and We have our own factory.

2.Reasonable prices and High quality:Quality and prices are our focus because we know what you will care at most.

3.Satisfactory after-sales service: Middle time production report with photos will be sent to you and also reconfirm accomplished date. We will establish close contact with you.Any problem you will get reply at the first time.

4.Free samples: Free samples available at any time.

You can get competitive prices from us because we possess big manufacturing relationship in China.
