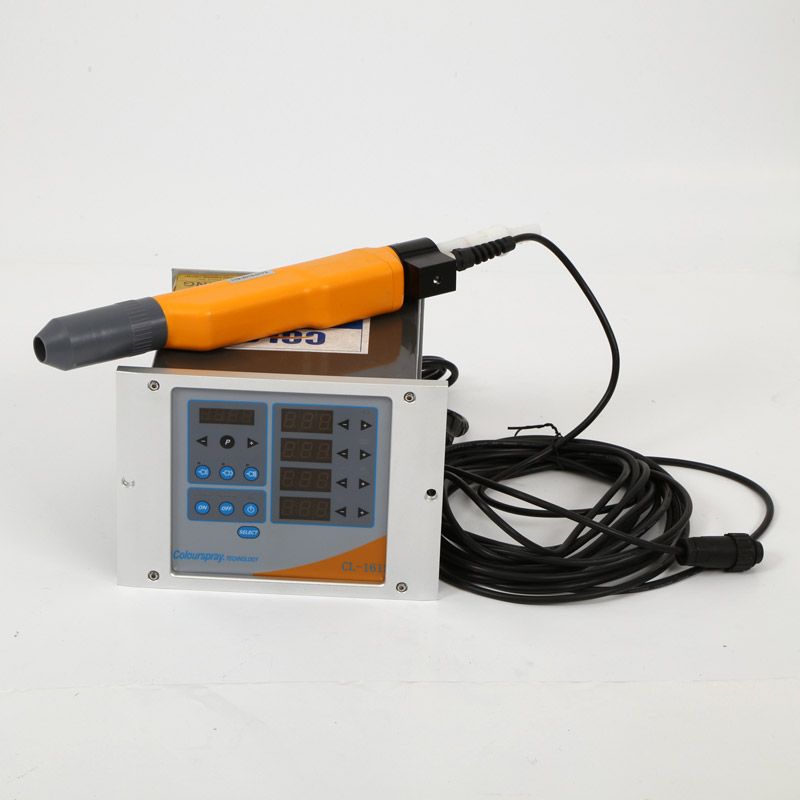

Automatic Electrostatic Powder Coating Spraying Equipment---161S, this machine is automatic coating equipment. Compared with the machine 151S, althought their function is similar, 161S has a more compact design and with a new display design.

1. technical Data
Electrical data
Power range                                  220V/110V
Frequency                                     50HZ /60HZ
Temperature range in use                      -10 ºC+50 ºC

Powder Gun
Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       - 200kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)

Pneumatic data
Maximum input-air pressure ........                 10kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.4g/N m3
Maximum oil vapor content of compressed air   .....     0.1ppm
Maximum compressed-air consumption...…            13.2 m3/h









This is the lastest powder coating product , and only in COLO. Here are reasons why you choose us:
compact design
drawing
specific illustration
commissioning
training
technical support

It has a intelligent control unit with 3 preset programs, flat mode, recoat mode and corner mode. You can choose as your request.
If you need any spare parts of the automatic powder coating gun, just please tell us the item number.
