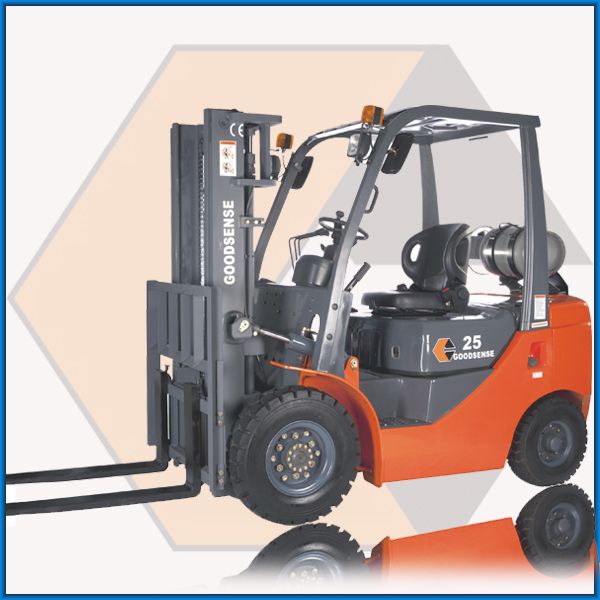

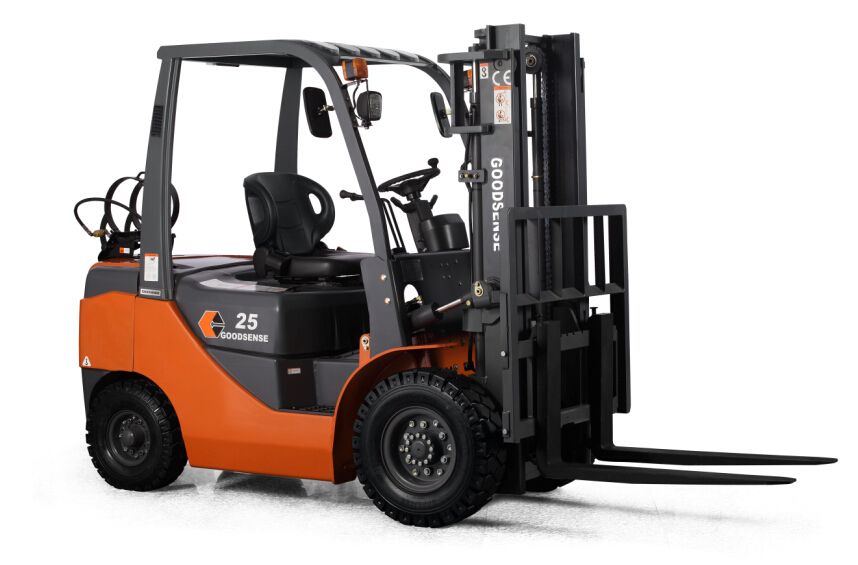

2.5ton Gasoline & LPG Forklift Truck Nissan Engine with CE
$10000.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: FY25
  • Transport Package: In The Nude
  • Origin: Taizhou, Zhejiang
  • Trademark: GOODSENSE
  • Specification: CE/SGS
  • HS Code: 84272090
Product Description
Capacity: 2500KG
Engine: Nissan K25
2.5ton Gasoline & LPG Forklift Truck Nissan Engine with CE
2.5ton Gasoline & LPG Forklift Truck Nissan Engine with CE
2.5ton Gasoline & LPG Forklift Truck Nissan Engine with CE
Transmission: Automatic
Tyre: Pneumatic
Wide-view mast, solid overhead guard,
Ergonomic adjustable steering wheel and seat.
General 1 Model   FY25
2 Power Type    Gasoline/LPG
3 Rated Capacity kg 2500
4 Load Centre mm 500
Characteristic& Dimension  5 Lift Height mm 3000
6 Free lift height mm 120
7 Fork Size L× W× T      mm 1070× 122× 40
8 Mast Tilt Angle F/R Deg 6° /12°
9 Front Overhang (Wheel center to fork face) mm 482
10 Rear overhang mm 448
11 Ground Clearance mm 110
12 Overall Dimension Length to face of fork(Without fork) mm 2530
13 Overall Width mm 1150
14 Mast Lowered Height mm 1985
15 Mast Extended Height(With backrest) mm 4030
16 Overhead Guard Height mm 2070
17 Turning Radius (outside) mm 2240
18 Min. right angle asisle width mm 2000
Performance 19 Speed Travel (No load) km/h 20
20 Lifting (Full load) mm/s 490
21 Lowering(Full load) mm/s 450
22 Max. Drawbar Pull(Full load) kn 13.5
23 Max. Gradeability (No load/Full load) % 20
Chassis 24 Tire Front mm 7.00-12-12PR
25 Rear mm 6.00-9-10PR
26 Tread Front mm 970
27 Rear mm 970
28 Wheelbase mm 1600
29 Self weight kg 3730
Power& Transmission 30 Battery Voltage/Capacity  V/Ah 12/90
31 Engine Model   K25
32 Manufacture   NISSAN
33 Rated output/r. p. m. kw 37.4/2300
34 Rated torque/r. p. m. N@ m 176.5/1600
35 No. of Cylinder   4
36 Bore× Stroke mm 89× 100
37 Displacement cc 2488
38   Fuel Tank Capacity L 60
39 Transmission Type   Powershift
40 Stage FWD/RVS   1/1
