Zero Halogen PE Heat Shrink Tube For Wire Harness
1. Description of goods
Polyolefin heat shrink tube is developed environment-friendly flame retardant heat shrinkable tube, using specially designed formulation of high polymers, through cross-link by electronic accelerator and continuous expansion.
Operating temperature:-45ºC~125ºC
2. Characteristics
1). Environment-friendly, flexibility, flame retardant, non-smoke, non-toxic, quick shrink and stable characteristics ;
2). Rated temperature:-45ºC~125ºC ;
3). Shrink temperature:84ºC~120ºC ;
4). Shrink ratio: 2:1
5). Flame Retardant Rating: UL224 VW-1 ;
6). Environmental protection standard: ROHS;
7). Standard color: Black .
3. Range of application
Usage: electrical insulation, welding point anti-corrosion, mechanical protection.
Application range:Electronics, communication, automobiles, shipping and other manufacturing range.
4. Specification
| Property |
Unit |
Test Method |
Standard |
|
Tensile Strength
|
MPA
|
≥10.4(before aging)
|
GB/T 1040 |
|
≥7.3(after aging)
|
158ºC*168h
|
|
Breakage Elongation (%)
|
% |
≥200(before aging)
|
GB/T 1040 |
|
≥100(after aging)
|
158ºC*168h
|
|
Heat Shock
|
- |
no sticking & no cracking
|
250ºC*4h
|
|
Cold Blend
|
- |
no cracking
|
-30ºC*4h
|
|
Breakdown Strength
|
KV/mm
|
≥15 |
GB/T 1408 |
|
Dielectric Withstand
|
600V |
- |
Pass |
no breakdown for 2500V, 60s
|
| 300V |
- |
Pass |
no breakdown for 1500V,60s
|
|
Volume Resistivity
|
Ω. cm
|
≥1×1014
|
GB/T 1410 |
|
Corrosion Performance
|
- |
pass |
158ºC*168h
|
| Copper Stability |
- |
pass
|
158ºC*168h
|
| Flammability |
- |
pass
|
VW-1 |
5. Dimension
Inner
Diameter
|
As Supplied(mm) |
After Recovery(mm) |
Standard Package |
Application Range(mm) |
|
Inner Diameter
|
Wall Thickness |
Inner Diameter
|
Wall Thickness |
(m/spool)
|
| Φ0.6 |
0.9±0.2 |
0.20±0.05 |
≤0.40 |
0.33±0.10 |
400 |
0.4~0.7
|
| Φ0.8 |
1.1±0.2 |
0.20±0.05 |
≤0.50 |
0.33±0.10 |
400 |
0.6~0.8
|
| Φ1.0 |
1.5±0.2 |
0.20±0.05 |
≤0.65 |
0.36±0.10 |
400 |
0.75~0.9
|
| Φ1.5 |
2.0±0.2 |
0.20±0.05 |
≤0.85 |
0.36±0.10 |
400 |
0.95~1.4
|
| Φ2.0 |
2.5±0.2 |
0.23±0.05 |
≤1.00 |
0.45±0.10 |
400 |
1.1~1.8
|
| Φ2.5 |
3.0±0.2 |
0.23±0.05 |
≤1.30 |
0.45±0.10 |
400 |
1.35~2.3
|
| Φ3.0 |
3.5±0.2 |
0.23±0.05 |
≤1.50 |
0.45±0.10 |
400 |
1.6~2.7
|
| Φ3.5 |
4.0±0.2 |
0.23±0.05 |
≤1.80 |
0.45±0.10 |
400 |
1.85~3.2
|
| Φ4.0 |
4.5±0.2 |
0.25±0.05 |
≤2.00 |
0.45±0.10 |
400 |
2.1~3.6
|
| Φ4.5 |
5.0±0.2 |
0.28±0.05 |
≤2.30 |
0.56±0.10 |
200 |
2.35~4.0
|
| Φ5.0 |
5.5±0.2 |
0.28±0.05 |
≤2.50 |
0.56±0.10 |
200 |
2.6~4.5
|
| Φ6.0 |
6.5±0.2 |
0.28±0.05 |
≤3.00 |
0.56±0.10 |
200 |
3.1~5.4
|
| Φ7.0 |
7.5±0.3 |
0.28±0.05 |
≤3.50 |
0.56±0.10 |
100 |
3.7~6.3
|
| Φ8.0 |
8.5±0.3 |
0.30±0.08 |
≤4.00 |
0.56±0.10 |
100 |
4.2~7.2
|
| Φ9.0 |
9.5±0.3 |
0.30±0.08 |
≤4.50 |
0.56±0.10 |
100 |
4.7~8.0
|
| Φ10 |
10.5±0.3 |
0.30±0.08 |
≤5.00 |
0.56±0.10 |
100 |
5.2~9.0
|
| Φ11 |
11.5±0.3 |
0.30±0.08 |
≤5.50 |
0.56±0.10 |
100 |
5.7~10
|
| Φ12 |
12.5±0.3 |
0.30±0.08 |
≤6.00 |
0.56±0.10 |
100 |
6.2~11
|
| Φ13 |
13.5±0.3 |
0.30±0.08 |
≤6.50 |
0.56±0.10 |
100 |
6.7~12
|
| Φ14 |
14.5±0.3 |
0.35±0.10 |
≤7.00 |
0.70±0.10 |
100 |
7.3~13
|
| Φ15 |
15.5±0.4 |
0.35±0.10 |
≤7.50 |
0.70±0.10 |
100 |
7.8~14
|
| Φ16 |
16.5±0.4 |
0.35±0.10 |
≤8.00 |
0.70±0.10 |
100 |
8.3~15
|
| Φ17 |
17.5±0.4 |
0.35±0.10 |
≤8.50 |
0.70±0.10 |
100 |
8.8~16
|
| Φ18 |
19.0±0.5 |
0.35±0.10 |
≤9.00 |
0.70±0.10 |
100 |
9.3~17
|
| Φ20 |
22.0±0.5 |
0.35±0.10 |
≤10.00 |
0.83±0.15 |
100 |
10.4~19
|
| Φ22 |
24.0±0.5 |
0.40±0.12 |
≤11.00 |
0.83±0.15 |
100 |
11.4~21
|
| Φ25 |
26.0±0.5 |
0.40±0.12 |
≤12.50 |
0.90±0.15 |
50 |
12.8~24
|
| Φ28 |
29.0±0.5 |
0.45±0.12 |
≤14.00 |
0.90±0.15 |
50 |
14.4~29
|
| Φ30 |
31.5±1.0 |
0.45±0.12 |
≤15.00 |
1.00±0.15 |
50 |
16~29
|
| Φ35 |
36.5±1.0 |
0.45±0.12 |
≤17.50 |
1.00±0.15 |
50 |
18~34
|
| Φ40 |
41.5±1.0 |
0.45±0.12 |
≤20.00 |
1.00±0.15 |
50 |
21~39
|
| Φ45 |
46.5±1.0 |
0.50±0.15 |
≤22.5 |
1.00±0.15 |
25 |
23.5~44
|
| Φ50 |
≥50 |
0.50±0.15 |
≤25.0 |
1.10±0.15 |
25 |
26~49
|
|
Φ60
|
≥60 |
0.60±0.15 |
≤30.0 |
1.20±0.15 |
25 |
35~55 |
|
Φ70
|
≥70 |
0.65±0.15 |
≤35.0 |
1.30±0.20 |
25 |
40~65 |
|
Φ80
|
≥80 |
0.65±0.15 |
≤40.0 |
1.30±0.20 |
25 |
45~75 |
|
Φ90
|
≥90 |
0.65±0.15 |
≤45.0 |
1.30±0.20 |
25 |
50~85 |
|
Φ100
|
≥100 |
0.65±0.20 |
≤50.0 |
1.30±0.20 |
25 |
55~95 |
|
Φ120
|
≥120 |
0.65±0.20 |
≤60.0 |
1.30±0.20 |
25 |
65~115 |
|
Φ150
|
≥150 |
0.65±0.20 |
≤70.0 |
1.30±0.20 |
25 |
80~145 |
|
Φ180
|
≥180 |
0.65±0.30 |
≤90.0 |
1.30±0.30 |
25 |
95~175 |
|
Φ210
|
≥210 |
0.65±0.30 |
≤105.0 |
1.30±0.30 |
25 |
110~205 |
|
Φ230
|
≥230 |
0.65±0.30 |
≤115.0 |
1.30±0.30 |
25 |
120~225 |
|
Φ250
|
≥250 |
0.65±0.30 |
≤125.0 |
1.30±0.30 |
25 |
130~240 |
6. Packing informations
Size 0.6~4.0mm 400m/spool;
Size 4.5~6.0mm 200m/spool;
Size 7.0~22.0mm 100m/spool;
Size 25.0~40.0mm 50m/spool;
Size 45.0~250mm 25m/spool;
7. Color
Standard color is black (Other color available upon request.)

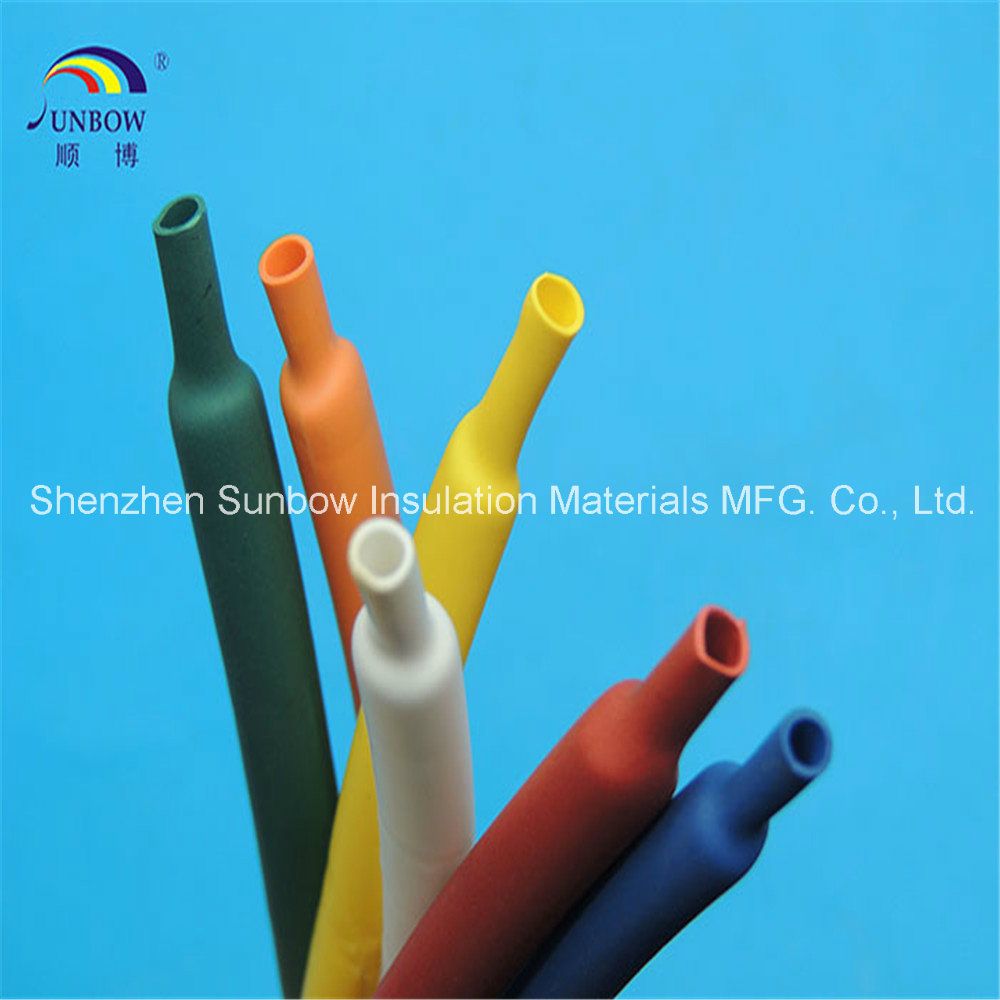

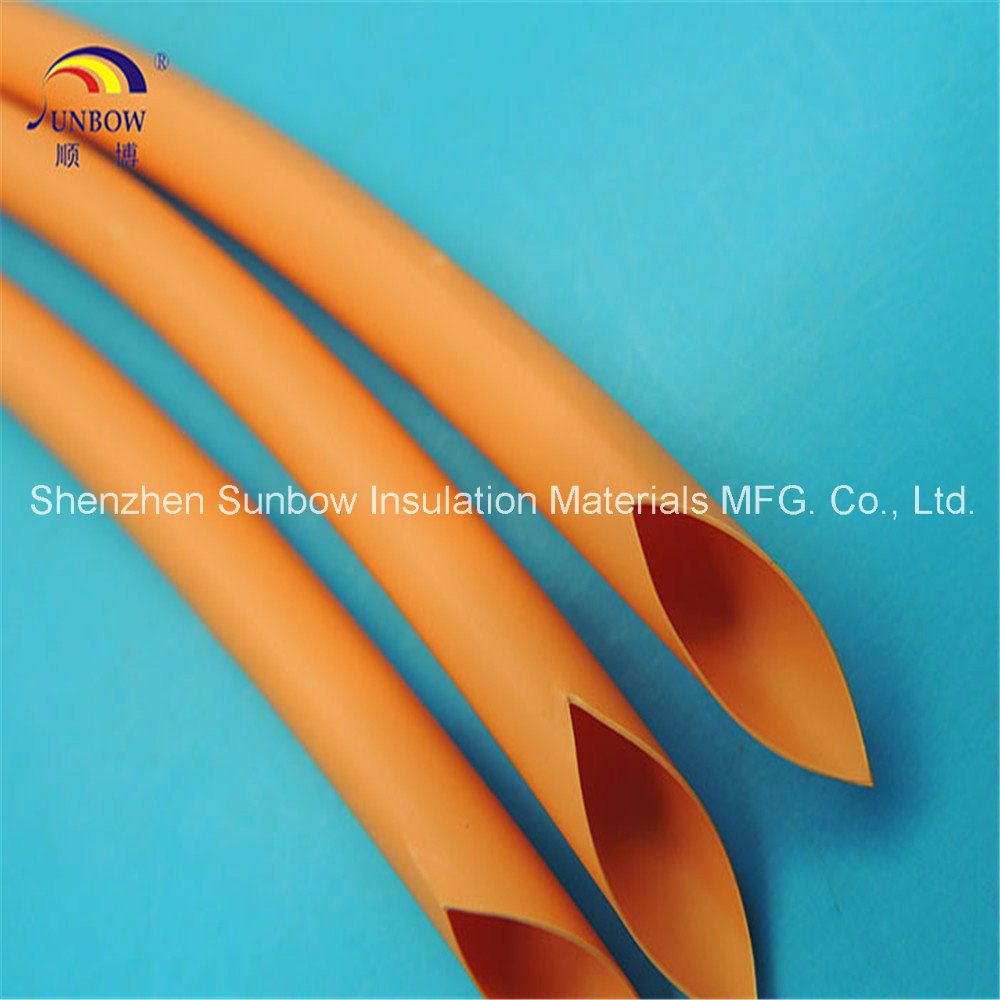

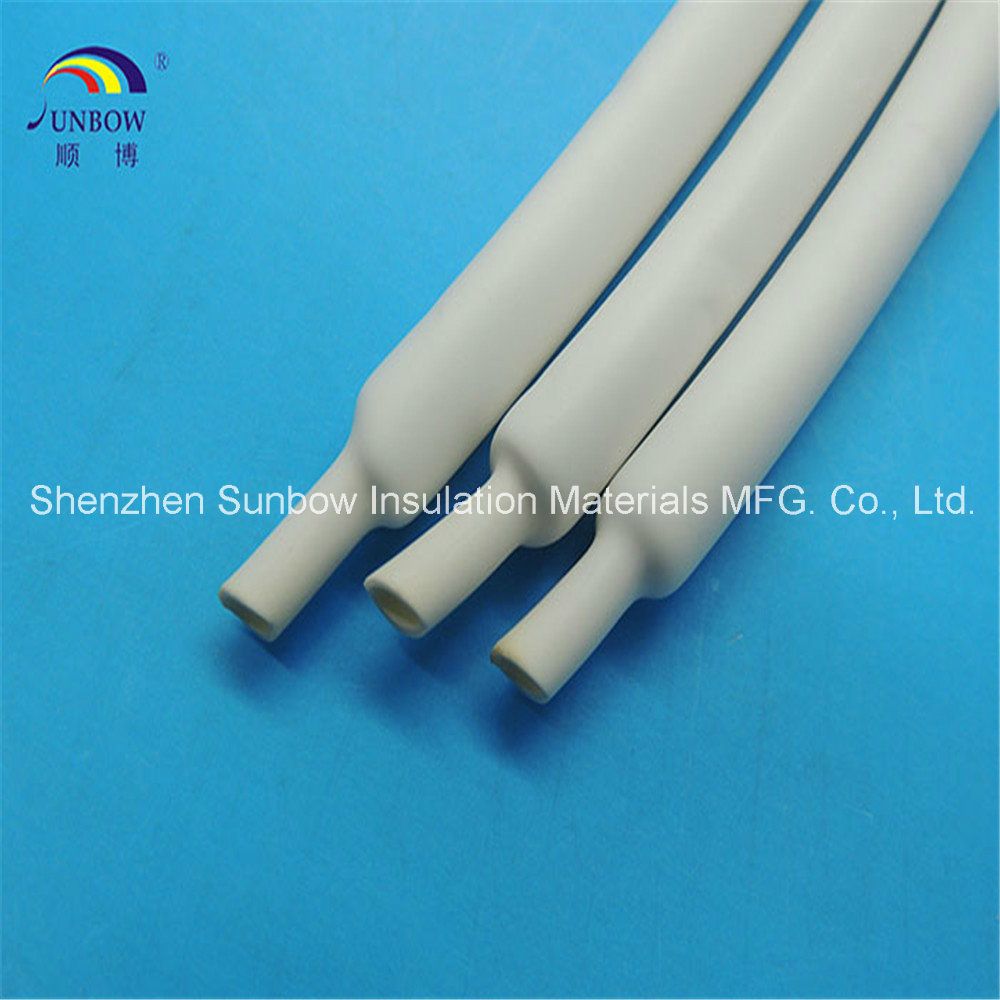

8. Pictures of goods
