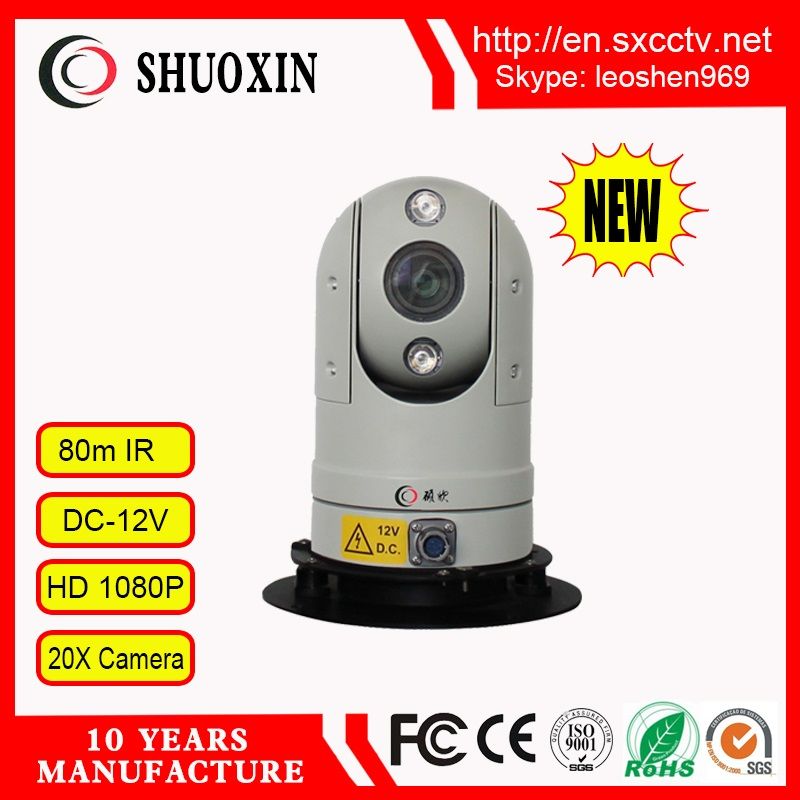

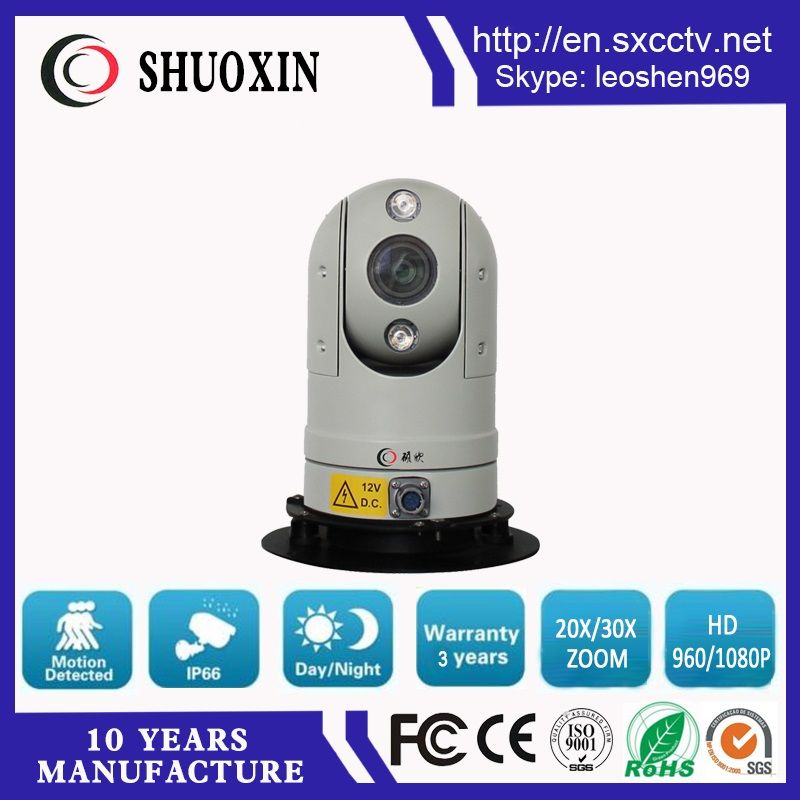

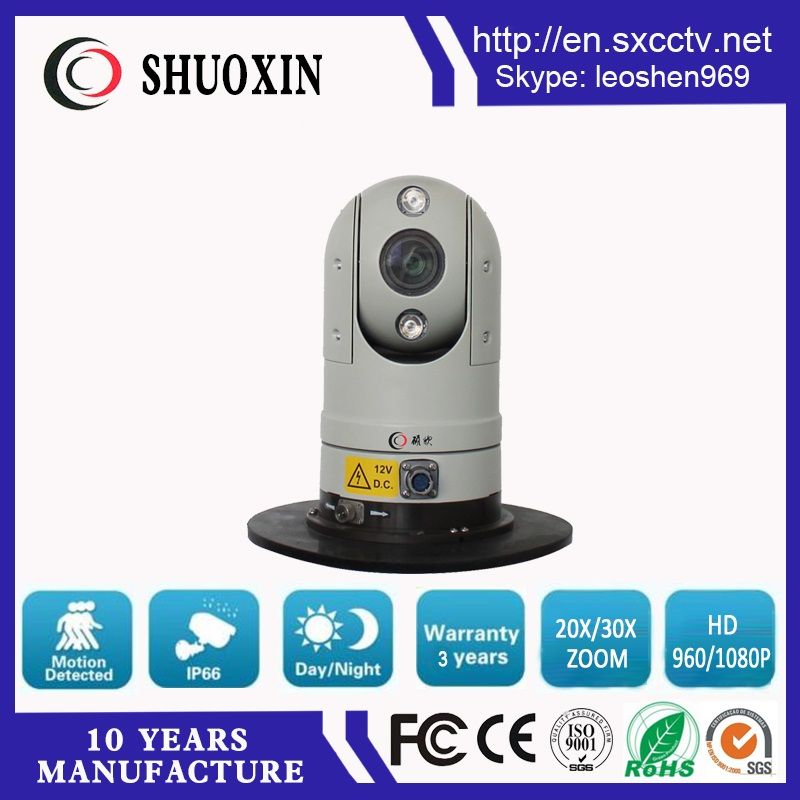

2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera
Add to wish list
22
+ Add a New List
2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera
$350.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: WL-HD-HL-C
  • Style: Pan/Tilt
  • Sensor: CMOS
  • Horizontal Resolution: 650tvl
  • Certification: CE, FCC, CCC, RoHS
  • Effective Distance: 80m
  • Remote Control: Without Remote Control
  • Transport Package: Strong Carton with Poly Bag
  • Origin: Changzhou
  • Technology: Infrared
  • Type: IP Camera
  • HDMI Format: 1080P
  • Kind: Autofocus Lens
  • Feature: Waterproof / Weatherproof, High Definition, Auto BLC
  • Sensor Size: 1/3 inch
  • Trademark: Shuoxin, Neture or OEM
  • Specification: CE, FCC, ROHS
  • HS Code: 8525801390
Product Description
We are looking for global security dealers, project contractors for cooperation, once become our agents in your local, you will get a huge profit.
2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera

2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera

80m Night Vision 2.0MP HD IR Vehicle PTZ Digital Camera

2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera
2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera
2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera



Functions:

1.Integrated 16 bit processors,with low power consumption,more stable
2.Built-in high-intensity OSRAM chips,it could achieve the further distance surveillance.
3.Precision 0.9°motor-driven,more stable and low speed control smoothly without jitter.
4.Using industrial-grade components ,and it is suitable for bad weather environment.

Features:

MODEL: WL-HD-HL-C

1.Weather-proof design for car surveillance with special shock absorber WL-CZ52
2.With WL-XD0502 powerful magnet for portable outdoor vehicle monitoring
3.It is suitable for video conference
4.This PTZ camera integrated with different kinds of HD camera module and HD sensor, achieving HD image capturing.
5.It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
6.It applies full digital control,flexible programming,drive line compact and simpledesign, could take rapid positioningand continuous tracking scan, really achieving full range monitoring without blind spot.
7.The maximum resolution to support 1080P@30fps
8.Supporting dual stream and HD capture
9.Supporting variety of HD Platform connection

Network Parameter:

Video compression standard H.264/MJPEG
Audio compression standard G.711ulaw/G.711alaw/G.726
Compression output code rate 32 Kbps~16Mbps
Network protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,for optional)
SD Card interface Support micro SD
Smart alarm Remote detection,Screen-covered alarm,Memory storage full,Memory storage wrong
Video IE browse 10 Users online access to the system simultaneously (Max)
Dual stream Support
User rights 32 Users (Max),3 different levels:Administrator, Operator, and the normal user can only browse
Security mode Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering
ROI Encoding It could support 24 areas,grade adjustable

HD Camera Parameter:

Camera 30x,2.0 Mega pixel camera module
Model 3007
Image sensor 1/2.8" Progressive Scan CMOS
Zoom 30X Optical zoom
Focal length 4.5-135mm
Resolutions 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)
50HZ:25fps(1280x720) 60HZ:30fps(1280x720)
Min.illumination Color:0.05Lux @ (F1.6,AGC ON)Day&Night:0.01Lux @(F1.6,AGC ON)
S/N ratio >52dB
Back light compensation ON/OFF
WB,Iris,Focus Auto/Manual
Day&Night model ICR filter
Electronic shutter 1/1s ~ 1/30,000s

PTZ Parameter:

Model WL-HD-HL-C
Lamp type IR Lamp
Night version range 100m
Pan range 360°continuously rotation
Pan preset speed 300°/s
Tilt preset speed 120°/s
Pan control speed 0.1°-220°/s
Tilt control speed 0.1°-90°/s
Tilt range 0°~ 90° (Auto Flip)
Preset positions 256
Temperature and humidity -35°C-55°C,humidity less than 90%
Power supply AC24V/3A,DC12V/5A
IP grade IP66(Outdoor)TVS 4000V lightning,anti-surge protection
Installing way Different installing ways accordingly
Weight 2.5KG

2.0MP 20X Zoom Chinese CMOS HD IR Vehicle Digital Camera
