New Design Ceiling Mounted LED Shadowless Surgical Theatre Light with Ce (SY02-LED5+5-TV)

Add to wish list

+ Add a New List

New Design Ceiling Mounted LED Shadowless Surgical Theatre Light with Ce (SY02-LED5+5-TV)

$11000.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: SY02-LED5+5-TV
Kind: All Surgery
Group: Adult
Source: Nitrous Oxide
Type of Operating Light: Double Operating Light
Medical Devices Reg./Record No.: Hxzz20142540162
Colour Temperature: 4500±200K
Illuminance Depth: 1150mm/1150mm
LED Service Life of Illuminant: More Than 50000h
Rated Power of Bulb: 3.2V/1W
Lowest Height of Installation: 2900mm
Transport Package: Three Plywood Case
Origin: Shanghai, China

Type: Operating Light
Certification: CE, SGS, FDA, ISO13485, ISO9001
LCD Display: With LCD Display
Anesthesia: Closed Circuit
Medical Device Regulatory Type: Type 2
Illuminance: ≥160000lux/≥160000lux
Colour Reduction Index(Ra): 96
Size of Light Field: 200-350mm
Total Irradiance: 510 W/M2
Power Supply Voltage: AC110V-240V
Trademark: SHANGYI
Specification: CE, SGS, ISO, FDA
HS Code: 940540

Product Description

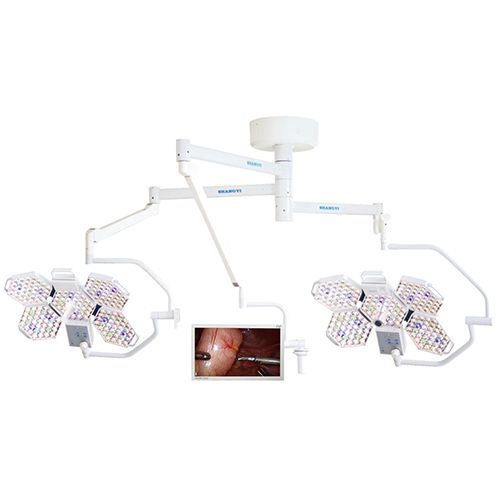

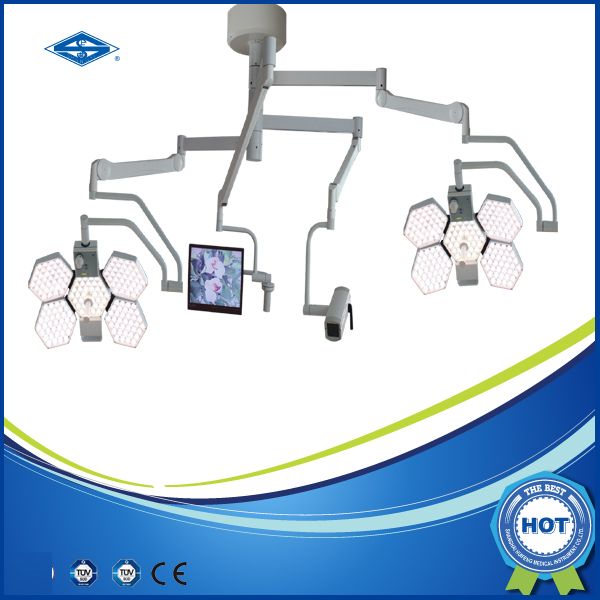

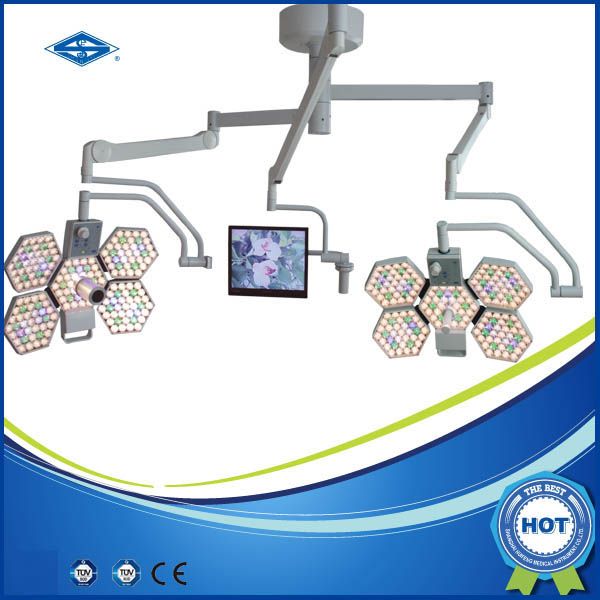

New Design Ceiling Mounted LED Shadowless Surgical Theatre Light (SY02-LED5+5-TV)

Main feature:

- Uniform, homogeneous lighting in surface and deep cavity procedures thanks to SY02-LED5+5-TV innovative shadow control

- Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team

- Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection

- Environmentally proactive: Low power consumption and durable LEDs minimize the impact on our precious resources.

- Unmatched shadow management optimizes concentration and surgical team efficiency

Technical data:

Type	SY02-LED5+5-TV
Illuminance(Lux)	160000Lux;/160000Lux
Colour temperature(k)	4500±200
Colour reduction index(Ra)	96
Illuminance depth(mm)	1150/1150
Total irradiance (W/m2)	510
Size of light field (mm)	200-350
Rated power of bulb(V/W)	3.2V/1W
LED Service life of illuminant	≥50000
Power supply voltage	AC110V-240V(50HZ-60HZ)
Brightness adjustmen	stepless continuous light adjustment
Total power consumption(W)	160
Total LED bulb quantity(pcs)	368
Lowest height of installation(mm)	3100
Warranty	2 years
Delivery time	3-5days

Camera data
SNR	≥600TVL
Camera shooting distance	:≥46db
Foci	≥0.8~2m
Double ratio	F3.66~91.36mm
Video frequency export	22 double
Vidicon power supply	1.0Vp-p75Ω
Lowest height of installation	12VDC±10%
