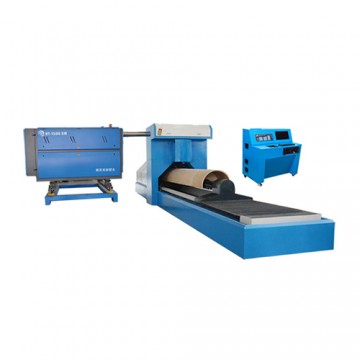

Rotary Laser Die Cutter Machine for Paper Box

$60000.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: GY-3000CD
Imprinting Type: Rotary Platen
Die Cutting Tool: Steel Blade
Automatic Grade: Automatic
Working Area: Phi 170--Phi 800*3000mm
Positioning Accuracy: 0.01mm
Transmitting System: 3 Axis Ball Screw Rail
Cutting Thickness: 13mm 15mm
Support Format: Plt, Dxf, Dsf, Ai
Trademark: Great Year Laser
Specification: 1000W, 1500W
HS Code: 8456100090

Species: Die Cutting and Creasing Machine
Placing Form of Template: Horizontal
Computerized: Computerized
Application: Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials
Gas of Laser: N2 He CO2
Cutting Accuracy: 0.02mm
Cutting Slit: 2PT, 3PT, 4PT
Support Software: Autocad, Coreldraw
Cooling Way of Laser: Water Cooling
Transport Package: Plywood Case
Origin: Guangzhou China

Product Description

flexo die cutting printing machine for rotary die cutting plywood

Specification

Model			GY-3000CD
Laser Power			1500W
Gas of Laser			N2 He Co2
Working Area			(Φ170--Φ800)x3000mm
Positioning Accuracy			0.01mm
Cutting Accuracy			0.02mm
Transmitting system			3 axis Ball screw rail
Cutting Slit			0.71mm 1.05mm 1.42mm (one time cutting)
Cutting Thickness			13mm 15mm
Support Software			AUTOCAD, CORELDRAW
Support Format			PLT, DXF, DSF, AI
Machine Voltage			380V±10% 50HZ, Gross Power: 15KW
Working Temperature			0ºC-45ºC (No Condensation)
Working Humidity			5-95%
Cooling way of Laser			Water Cooling
Machine Weight			3T
Demension			Machine:760150180cm
			Laser: 190330200cm
			Controller:10080120cm

1) Specially for Rotary die board cutting Dia Φ170--Φ800mm, Length up to 3000mm, Easy adjustable!

2) Auto focus laser cutting head, suitable for cutting wood in same cutting slit.

3) Long life span 1000W Hybrid gas flow laser generator, offering perfect optical quality with strong power
4) New programming software multiple file formats supporting, and machining process customization.
5) Capable to cut different slit width in one drawing.
6) Configured with a three directions optical design, available for different customer environments.

Configuration
Rotary Laser Die Cutter Machine for Paper Box

Applicable materials:
Die board plywood, MDF, Acrylic etc.

Applicable industry:
It is widely use in Corrugated Die Cutting industry, printing dies, pakages dies, advertising signs,etc.

Samples

Rotary Laser Die Cutter Machine for Paper Box

Packing & Delivery
The laser cutting machine will be packaged by pe film first, and the normal package is wooden box which will be fumigated.Also it could be packed according to customers special request.

Certifications
Rotary Laser Die Cutter Machine for Paper Box

Our Service

Pre-Sales Service	After-Sales Service	Warranty
Inquiry and consulting support	Training how to install the machine, training how to use the machine	Machine with 12 months warranty
Sample testing support	Engineers available to service machinery overseas	Consumable parts: laser tube -- 6 months warranty,focus lens-- 3 months warranty
View our Factory

Our Laser Die Cutting Machine Include all this extras:

Industrial Water Chiller CW3000 CW5000
Industrial Exhaust Fan
One Year Warranty
24/7 Support E-mail online, Skype video, Teamviewer online
Professional User's manual
CD installation video and Training video
Free Training at supplier factory.

Machine Maintenance
Detailed maintains steps was mentioned at the User's Manual!

Using Software
Adjust the optical laser path
Health And Safety Precautions

FAQ

1)Is the machine cutting wood in different gap?

Yes, Software is from Germany, with auto focus cutting head, easy cut 2pt 3pt 4pt in one design.

2) What kinds of laser with this machine ? how long life span?

It is Hybrid CO2 laser generator, power up to 1000w 1500w 2000w, powerful cutting plywood in high speed.

It is feeding by He, N2 and co2 gas, life span up to 10 years, like auto car, after 3-5years need to maintain for one time, maintaining fee around 5000USD.

3)How fast can machine cut the plywood 15mm ?

Normally 1000w can get 65m/hr speed for cutting 15mm die board.

4)how much total power of the whole machine ?

It will be around 15KW.

5)What accessories of the machine ?

Water Chiller, Exhaust Fan, Laser Generator, Controller system.

6) What will be the consumable parts of this machine ?

A. Focus lens life span 5000hrs.

B. Gas ( N2 20usd/m, He 300usd/m, Co2 1usd/m )

7) Do you have engineer for local installation in my factory ?

Yes, we will send engineer to your for installation and training if you carrie round trip air tickets and accommodation fee, free training in our factory.

8) Can I come to you for Die manual accessories and materials?

YES, we have full solutions of the laser die cutting, both the flat dies and rotary dies, it is our pleasure to help you.

if more questions, please feel free to contact with us.

Looking for agents all over the world! Any questions, welcome to contact us!
