Stock:	1000Unit

Product Description

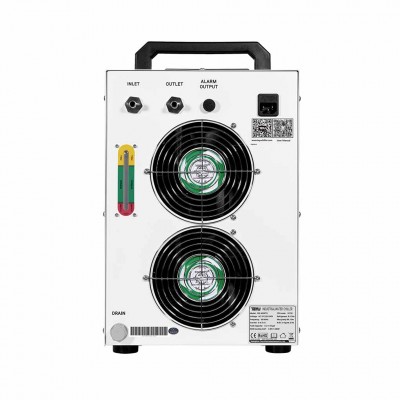

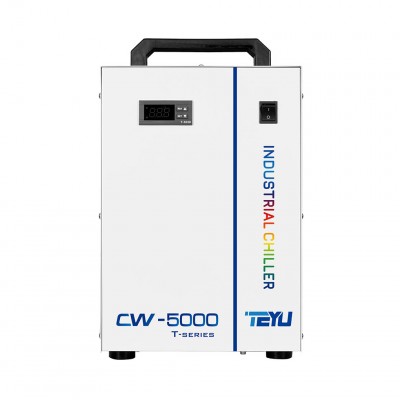

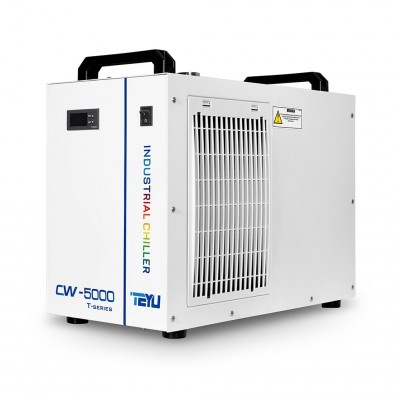

TEYU industrial chiller CW-5000 can provide perfect cooling for up to 120W CO2 DC laser tubes. This small chiller has a small footprint, saving a lot of space for CO2 laser engraver and cutter users. The temperature control accuracy of CW-5000 chiller is ±0.3°C with a cooling capacity of up to 1080W. Industrial chiller CW-5000 is capable of providing superior active cooling. It has multiple choices of water pumps and optional 220V or 110V powers. Designed with intelligent temperature control function, water chiller CW-5000 can keep your CO2 laser tube at a water temperature you preset, automatically adjusting the temperature for you to avoid the occurrence of condensate water.
Features
* Cooling Capacity: 1080W
* Active cooling
* Temperature stability: ±0.3°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-134a
* Compact, portable design and quiet operation
* High efficiency compressor
* Top mounted water fill port
* Integrated alarm functions
* Low maintenance and high reliability
* 50Hz/60Hz dual-frequency compatible available
* Optional dual water inlet & outlet

Model	CW-5000TGTY	CW-5000DGTY	CW-5000TITY	CW-5000DITY
Voltage	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 110V
Frequency	50/60Hz	60Hz	50/60 Hz	60Hz
Current	0.4~3.1A	0.4~5.3A	0.8~3.5A	0.8~5.7A
Max. power consumption	0.44/0.46kW	0.43kW	0.51/0.53kW	0.5kW
Compressor power	0.37/0.39kW	0.38kW	0.37/0.39kW	0.38kW
Compressor power	0.5/0.53HP	0.51HP	0.5/0.53HP	0.51HP
Nominal cooling capacity	3037/3686Btu/h	3514Btu/h	3037/3686Btu/h	3514Btu/h
	0.89/1.08kW	1.03kW	0.89/1.08kW	1.03kW
	765/928Kcal/h	885Kcal/h	765/928Kcal/h	885Kcal/h
Pump power	0.03kW		0.1kW
Max. pump pressure	10M		25M
Max. pump flow	10L/min		16L/min
N.W.	21Kg	22Kg	25Kg	24Kg
G.W.	24Kg	25Kg	28Kg	27Kg
Refrigerant	R-134a
Precision	±0.3ºC
Reducer	Capillary
Tank capacity	6L
Inlet and outlet	OD 10mm barbed connector		10mm fast connector
Inlet and outlet	OD 10mm barbed connector		10mm fast connector
Dimension	58 X 29 X 47cm (L X W X H)
Package dimension	65 X 39 X 51cm (L X W X H)

The reasons why you can rely on us are as follows:

- Experienced chiller manufacturer & supplier, focusing on laser cooling and industrial processing cooling for 21 years

- Factory area of 25,000m2 with 400+ employees;

- Annual sales quantity of 120,000 units, exported to 100+ countries

- Cooling capacity ranging from 0.6kW-41kW;

- Available for fiber laser, CO2 laser, UV laser, diode laser, ultrafast laser, etc; Other industrial applications of our chillers include CNC spindles, machine tools, UV printers, vacuum pumps, furnaces, and other equipment that requires precise cooling.

- 2-year warranty with professional after-sales service.

- Reliable quality at a competitive price;

- ISO, CE, ROHS and REACH certificated.

If you have any questions about the cooling solution for your laser or industrial processing equipment, please contact our professional team at sales@teyuchiller.com.
