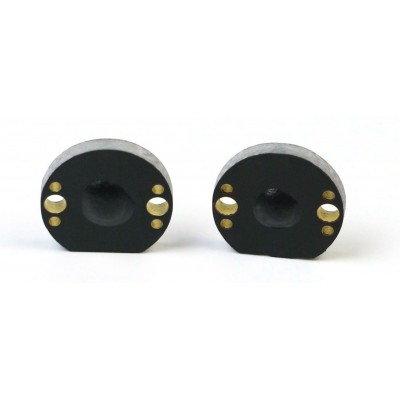

Instrument Tracking Tag, Tool Tracking UHF Tag for Anti-Metal Application
US $ 0.45
Hits
5
Total Stock
10000 piece
feedback()
VIEW ALL
Item Details
| Functional Specifications: |
|
| RFID Protocol: | EPC Class1 Gen2, ISO18000-6C |
| Frequency: | (US) 902-928MHz, (EU) 865-868MHz |
| IC type: | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles: | 100,000times |
| Functionality: | Read/write |
| Data Retantion: | Up to 50 Years |
| Applicable Surface: | metal Surfaces |
|
Read Range : (Fix Reader:ThingMagic FU-M6-E) |
150cm - (US) 902-928MHz, on metal 130cm - (EU) 865-868MHz, on metal |
|
Read Range : (Handheld Reader: OP9908, R2000) |
110cm - (US) 902-928MHz, on metal 90cm - (EU) 865-868MHz, on metal |
| Warranty: | 1 Year |
|
|
|
| Physical Specification: |
|
| Size: | Diameter13mm, (Hole: D2mm*2) |
| Thickness: | 2.0mm without IC bump, 2.8mm with IC bump |
| Material: | FR4 (PCB) |
| Colour: | Black (Red, Blue, Green, White) |
| Mounting Methods |
|
| Weight: | 0.7g |
|
|
|
| Environmenal Specification: |
|
| IP Rating: | IP68 |
| Storage Temperature: | -40°С to +150°С |
| Operation Temperature: | -40°С to +100°С |
| Cerifications: | Reach Approved, RoHS Approved, CE Approved |
