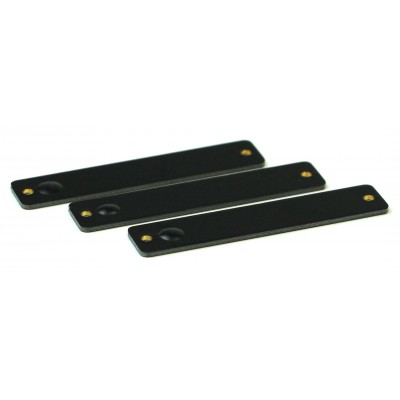

Asset Tracking RFID Tag, Logistic UHF Tag, Asset Management Anti-Metal Tag UHF

US $ 0.50

4.9

Total Stock 10000 piece

VIEW ALL

Functional Specifications:
RFID Protocol:	EPC Class1 Gen2, ISO18000-6C
Frequency:	(US) 902-928MHz, (EU) 865-868MHz
IC type:	Alien Higgs-3
Memory	EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles:	100,000times
Functionality:	Read/write
Data Retantion:	Up to 50 Years
Applicable Surface:	metal Surfaces
Read Range : (Fix Reader:ThingMagic FU-M6-E)	Up to 2.8M - (US) 902-928MHz, on metal Up to 2.5M - (EU) 865-868MHz, on metal
Read Range : (Handheld Reader: OP9908, R2000)	Up to 1.9M - (US) 902-928MHz, on metal Up to 1.7M - (EU) 865-868MHz, on metal
Warranty:	1 Year

Physical Specification:
Size:	50x10mm, (Hole: D2mm)
Thickness:	1.0mm without IC bump, 1.6mm with IC bump
Material:	FR4 (PCB)
Colour:	Black (Red, Blue, Green, White)
Mounting Methods
Weight:	1.5g

Environmenal Specification:
IP Rating:	IP68
Storage Temperature:	-40°С to +150°С
Operation Temperature:	-40°С to +100°С
Cerifications:	Reach Approved, RoHS Approved, CE Approved
