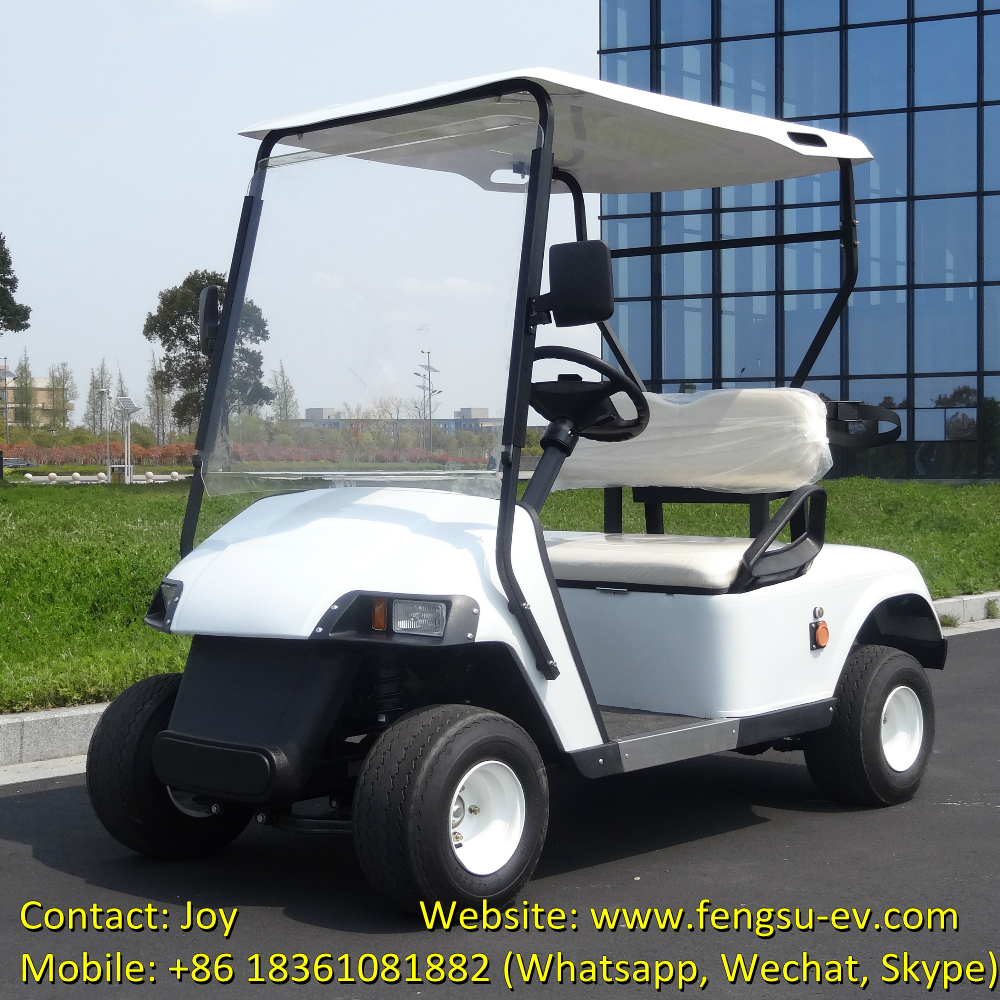

China 2, 4, 6, 8 seater electric golf cart/ golf car/ golf buggy
-
1-7 Unit
US $ 3000.00
-
8-15 Unit
US $ 2900.00
-
>=16 Unit
US $ 2850.00
Hits
31
Total Stock
100 Unit
feedback()
VIEW ALL
Item Details
| Model | FSEV402 |
| Electric System | |
| Controller | ① Enpower 60V ②Curtis 48V |
| Battery | ①gel maintenance-free battery ②normal lead-acid battery |
| Motor | ①60V 3KW AC ②48V 4KW AC |
| Charger | on board charger |
| Technical Parameter | |
| Passenger capacity | 1-2 seater |
| Overall dimension | 2350*1180*1800mm |
| Net Weight | 480kg |
| Load weight | 270kg |
| Min. clearance | 100mm |
| Braking distance | ≤4m |
| Input charging voltage | 220v |
| Max. speed | ≤30km/h |
| Driving Range | 60-80km |
| Max.climbing ability | ≤20% |
| Min.turning radius | ≤3m |
| Charging time | 6-8h |
| Body & Frame | |
| Seats | foam sponge+leather |
| Body | automotive engineering ABS plastic parts and components |
| Dashboard | forward/reverse switch, current meter, voltage meter, speed meter, battery capacity indicator |
| Frame | electric vehicle chassis, welded steel framework with paint treatment |
| Rear mirrow | 2pcs |
| Light system | head light, turning light, rear light, horn, reverse buzzer |
| Steering & Suspension | |
| Transmission system | automatic drive system (stepless speed change) |
| Steering system | rack and pinion steering system, automatic rocker compensating function |
| Front axle | Mcpherson independent suspension, spiral spring + cylinder hydraulic vibration absorber |
| Rear axle | motor directly connected integral rear axle, rear leaf spring + damper |
| Braking system | hydraulic front disc rear drum brake with mechanical parking |
| Tyre | golf tyre 18×8.50-8 |
