Non Woven Vest Bag Making Machine UBK-VB600
$18500.00 /set
Stock: 1000 sets
Quantity:
-+
Min Order: 1 piece
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
Basic Info
  • Model NO.: UBK-VB600
  • Lines: 1
  • Seals Mode: Ultrasonic Hot Sealing
  • Continuous-Rolled: Yes
  • Layer: Double
  • Computerized: Computerized
  • Trademark: UBIQUE
  • Specification: 9.6m*2m*2.1m
  • HS Code: 8449009000
  • Product Line: Non Woven Vest Bag Making Machine
  • Voltage: 220V/380V
  • Speed: High
  • Sealing & Cutting: Heat-Sealing Cold-Cutting
  • Machine Type: Bag Forming Machine
  • Type: Non-Woven Bag Making Machine
  • Transport Package: Plastic Film Inside, Wooden Splint Outside
  • Origin: Wenzhou, China
Product Description

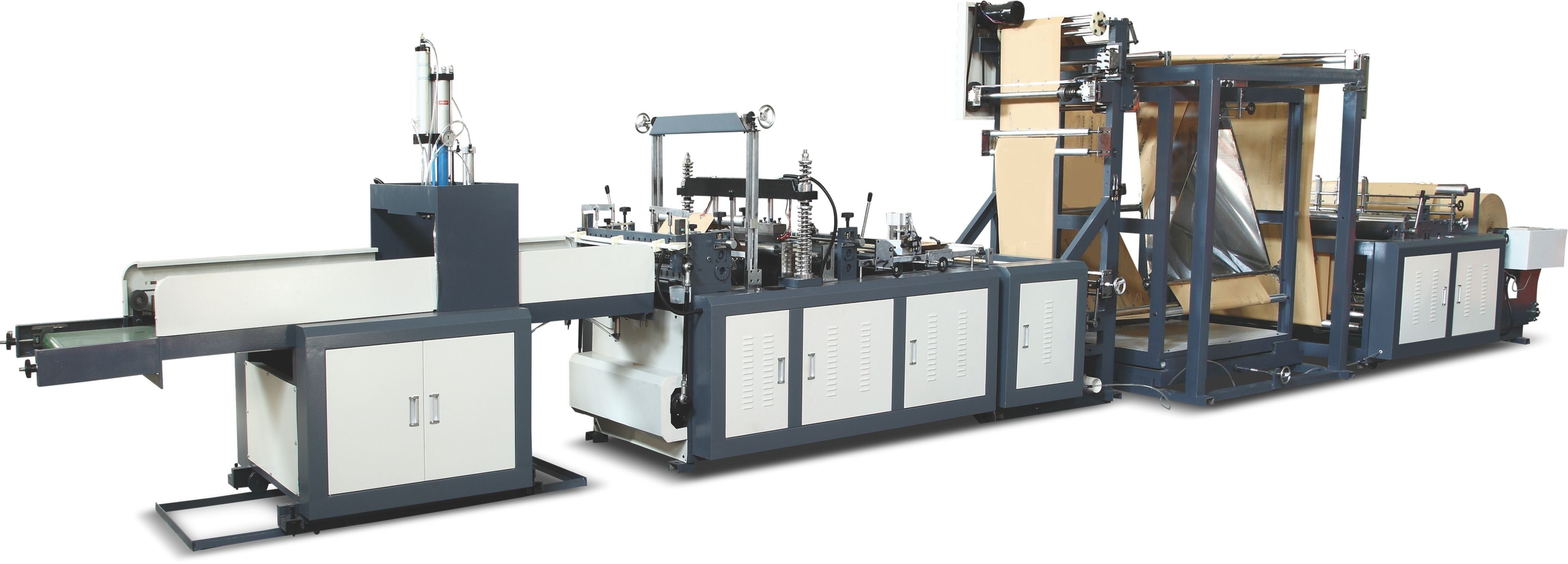

Non Woven Vest Bag Making Machine UBK-VB600
Non Woven Vest Bag Making Machine UBK-VB600

Non Woven Vest Bag Making Machine UBK-VB600
Non Woven Vest Bag Making Machine UBK-VB600

This non
 woven bag making machine special designed for non woven bag making, this machine takes non woven as raw materials. This machinery can produce

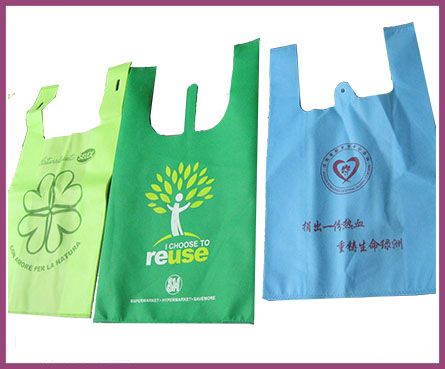

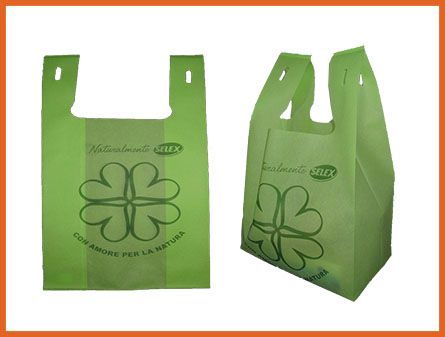

Non woven bags of various sizes and shapes, such as non woven shopping bags, reticule,
Flat port bags, clothing bags, shoes bags, and other products packaging bags.
Features:

This machine is electro mechanical integrative, once through fully automatic forming, touch Screen operation is applied, photo electric trace, computerized deviation rectifying function, Hence accuracy and smooth. Such automatic devices as slotting device, punching device and Metering device are equipped.

Finished products are produced at fast speed, in high efficiency, And in firm appearance after welding. This machinery is an optical choice for the non woven bag Making enterprise and businessmen devoted to the production of non woven environment friendly bags.

1, local touch-screen computer configured to operate;
2, arbitrarily set a long-step electric track, a smooth, lost support from the standard parking
3, feed off automatic shutdown, auto-punch;
4, while at the end of the roll-ultrasonic welding, in particular, solid, smooth;
5, automatic temperature and automatically correcting leaks;
6, while cutting edge automatic closure, automatic nesting.
Model UBK-VB600
Dimensions(L*W*H) 9.6m*2m*2.1m
Production speed 20-120PCS/Min
Fabric Thickness 30-100GSM
Power 12-18KW
Voltage Single phase,220V,50HZ
Weight 2300KGS
Produce Bag Width 100-800MM
Produce Bag Height 100-490MM
Produce Bag Side Gusset 9-17MM
Packing Plastic Film and Wooden Pallet

Model UBK-VB600 UBK-VB700 UBK-VB800
Production  speed 20-120pcs/min 20-120pcs/min 20-120pcs/min
Bag  width 100-800mm 100-800mm 100-800mm
Bag  length 200-500mm 200-600mm 200-700mm
Bag  making  thickness 30-100GSM 30-100 GSM 30-100 GSM
Power  supply 380V/220V 380V/220V 380V/220v
Total  power 12-18KW 12-18KW 12-18KW
Overall  size 9.6m*2m*2.1m 9.6m*2m*2.1m 9.6m*2.2m*2.3m
