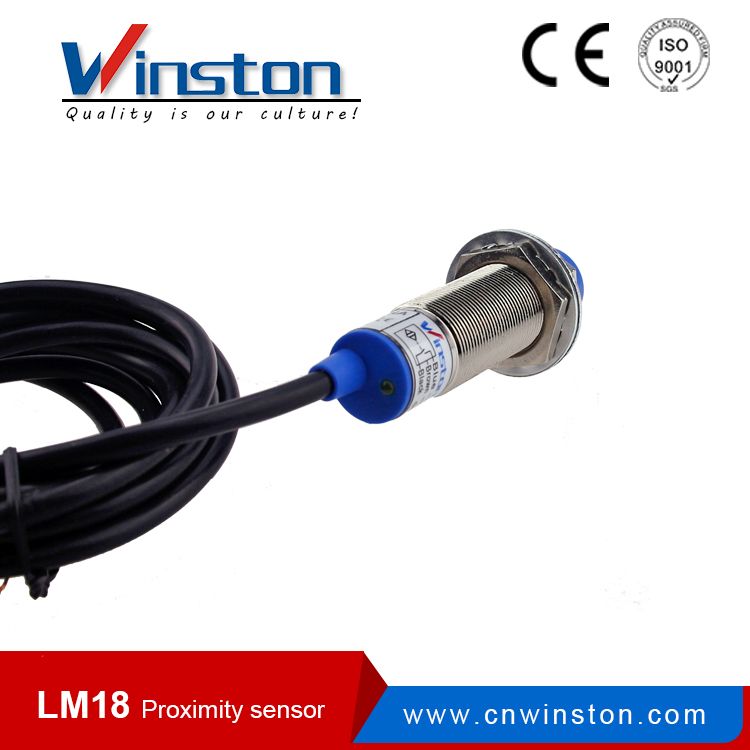

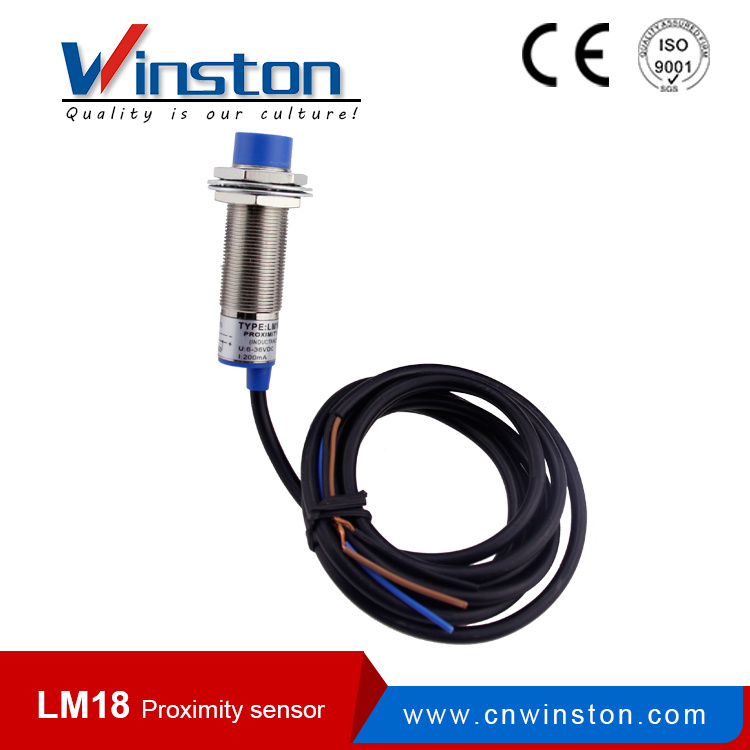

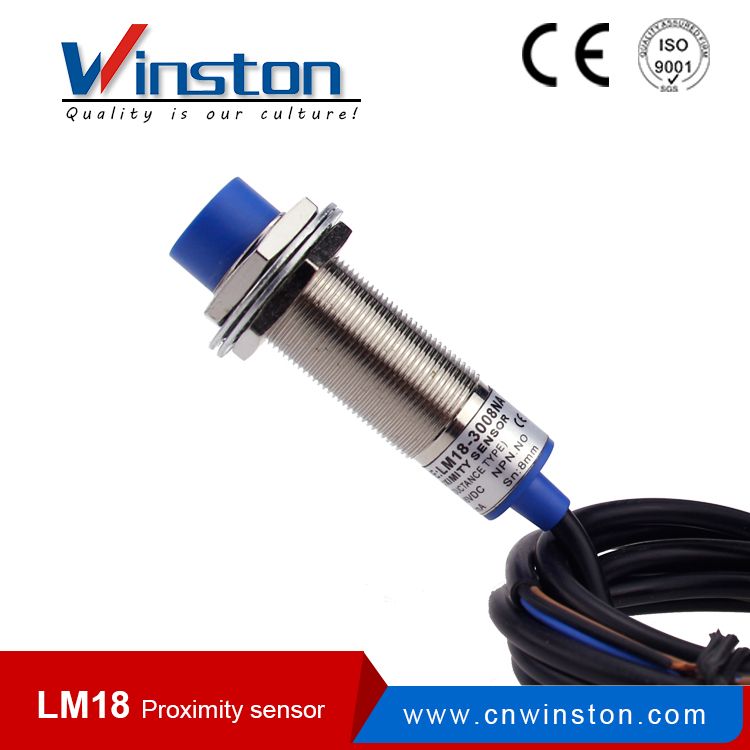

NPN/PNP No Nc 2 Wire Flush Type Proximity Sensor (LM18)
$3.02 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: LM18-3005
- Composition: Combination Mode
- Output: Switch Type
- Theory: Inductive Proximity Switch
- Brand: Winston/OEM
- Output Form: NPN PNP
- Transport Package: Export Standard Carton Box
- Origin: Made in China
- Type: Inductive Proximity Switch
- Production Process: Copper
- Usage: Position Sensor
- Shell Material: Metal
- Working Tem.: -25 C~+70c
- Trademark: Winston/OEM
- Specification: CE
- HS Code: 90330000
Product Description
Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output;: AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output;: AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
Main Features:
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Size:
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Size:
| DETECTION DISTANCE 5mm | ||||
| Flush | DC10-30V | NPN | NO | LM18-3005NA |
| NC | LM18-3005NB | |||
| NO+NC | LM18-3005NC | |||
| PNP | NO | LM18-3005PA | ||
| NC | LM18-3005PB | |||
| NO+NC | LM18-3005PC | |||
| two wire system | NO | LM18-3005LA | ||
| NC | LM18-3005LB | |||
| AC90-250V | SCR Control-lable silicon | NO | LM18-2005A | |
| NC | LM18-2005B | |||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 8mm | ||||
| Non-Flush | DC10-30V | NPN | NO | LM18-3008NA |
| NC | LM18-3008NB | |||
| NO+NC | LM18-3008NC | |||
| PNP | NO | LM18-3008PA | ||
| NC | LM18-3008PB | |||
| NO+NC | LM18-3008PC | |||
| two wire system | NO | LM18-3008LA | ||
| NC | LM18-3008LB | |||
| AC90-250V | SCR Control-lable silicon | NO | LM18-2008A | |
| NC | LM18-2008B | |||
| NO+NC | ||||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA | |||
| Output voltagc drop DC/AC | NPN/PNP< 3V,Two wire<3.9V,AC< 10V | |||
| Consumption current | DC< 15mA, AC< 10mA | |||
| Standard detected object | 18*18*1(A3 iron) | |||
| Repeated precision | 0.02 | |||
| DC/AC | 200Hz/25Hz | |||
| Working environment temperature | -25º C~+70º C | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | LJ18A3-8- | |||
PS: If you can't find the exact type of your product.Please don't rush to go away. Contact me and your questions will be replied ASAP. Thank you for your time.
