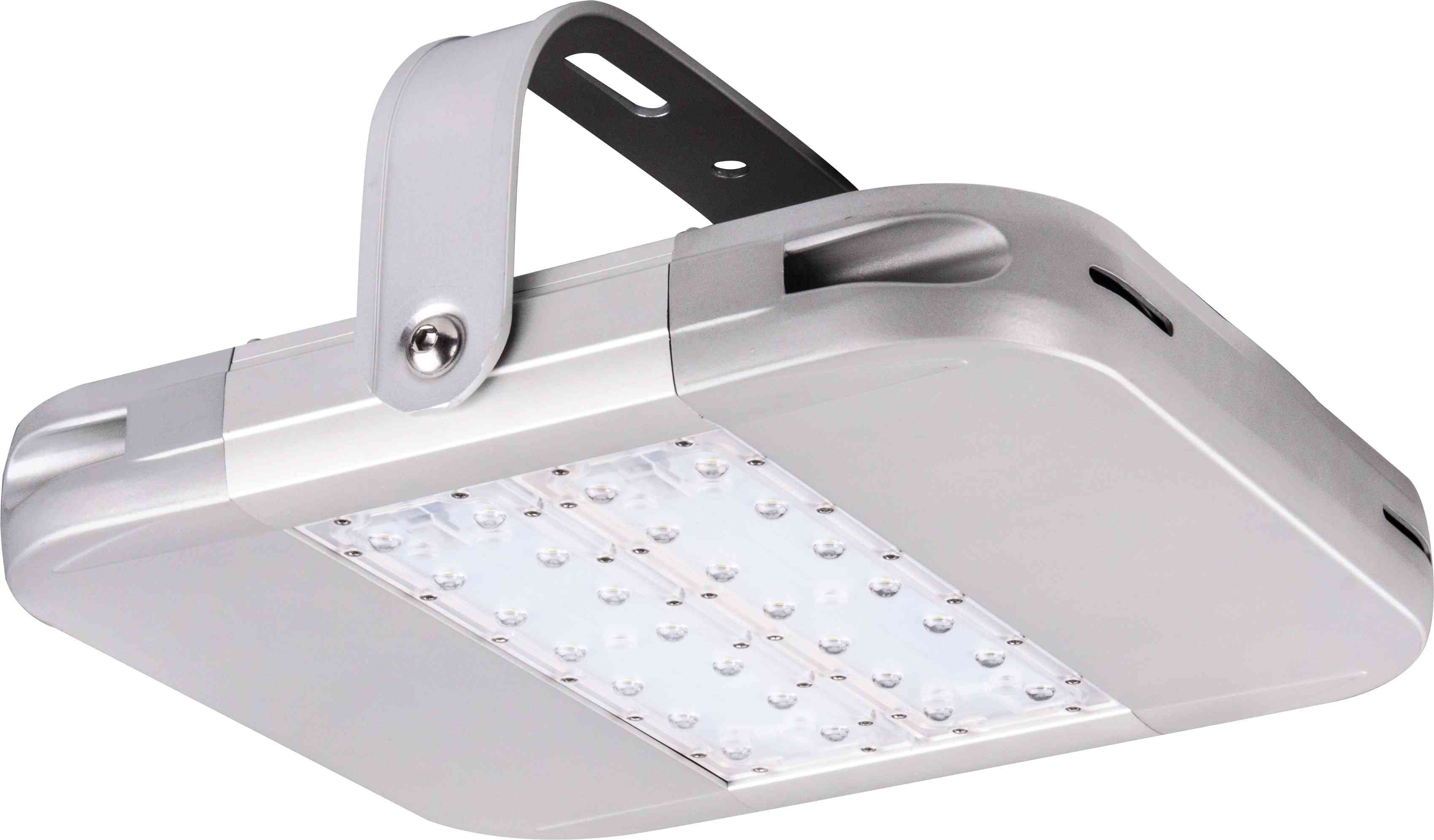

IP66 Waterproof UL Dlc 160W LED High or Low Bay Lamp with Motion Sensor
$164.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: ZGSM-GCD160H
- Lamp Body Material: Aluminum
- Usage: Warehouse
- IP Rating: IP66
- Beam Angle: 60deg, 90deg, and 110deg.
- Lumen Output: 17, 600lm(+/-5%)
- Ik Rating: Ik10
- Trademark: ZGSM
- Specification: CE, ROHS, GS, CB, UL, CUL, DLC
- HS Code: 9405409000
- Color Temperature: 4000k, 5000k, 5700k
- Power: 160W
- Lifespan: 100, 000h
- Certification: CE, EMC, FCC, GS, LVD, RoHS, SAA, UL, EMC, Energy Star, FCC, GS, RoHS, SAA, Saso, UL
- LED Chips: Philips Lumileds
- Input Voltage: 100-240/277VAC/347V/480V
- IP: 66
- Transport Package: 1unit/Carton
- Origin: Lin′an, Hangzhou, Zhejiang, China
Product Description
Major advantages of our H Series high bay light:
1. PHILIPS LUXEON® TX luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 100,000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.
6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB, SAA certificated.
8. Patent product with 5 patent certificates.
9. 5 years Warranty
10. 100-240V/277V/347V/480V AC
11. Wide application range, can be applied as industrial Light,canopy light, floodlight, stadium lights, tunnel light, warehouse light, gas station light and so on.
Projects:
1. PHILIPS LUXEON® TX luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 100,000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.
6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB, SAA certificated.
8. Patent product with 5 patent certificates.
9. 5 years Warranty
10. 100-240V/277V/347V/480V AC
11. Wide application range, can be applied as industrial Light,canopy light, floodlight, stadium lights, tunnel light, warehouse light, gas station light and so on.
| 1. UL Certificate No.: E466856 |
| 2. TUV GS-Mark Approval, Certificate No. B151178142034 |
| 3. CB TEST CERTIFICATE, Ref. Certif. No.: SG-LE-00793M1 |
| 4. SAA Certificate No.: SAA150406 |
| 5. RCM Certificate No.: SAA150406-EA By SAA Approvals Pty Ltd |
6. For DLC, please check in website: #results,search by keyword "ZGSM" for more details for all the models. |
| Specifications | |
| Model | ZGSM-GCD160H |
| LED Brand | Philips LUXEON® TX |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 160W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC/347V/480V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 17600 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000 5000 or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | '-40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100, 000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79, SAA |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 512 x340 x156 mm |
| Fixture Weight | 6.0 kg /13.2 lbs |
| Packing Dimension | 560 x365 x160 mm |
| Packing Weight | 7.0 kg /15.4 lbs |
