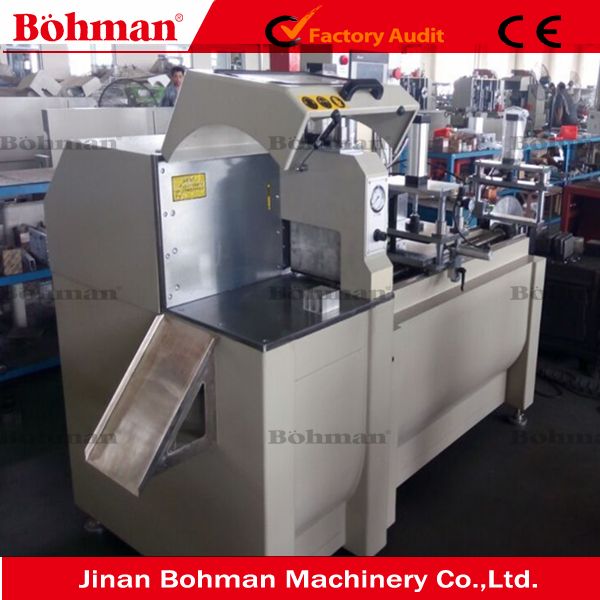

High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
$8000.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: GXSK-450
- Warranty: 1-year
- Condition: New
- Application: Metal, Plastic
- Layout: Horizontal
- Specification: 2500*1200*1650mm
- HS Code: 8459310000
- Waterproof Rating: IPX-8
- Certification: CE
- Control: Automatic
- Power Source: Electric
- Trademark: Bohman
- Origin: Shandong, China
Product Description
Main Features:
1.CNC system and it can set cutting length ,and auto-feeding and cutting and whitout tailing.
2. Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high
machining precision,high material utilization
3. The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision
4. With the function of automatic counting
5. With the device of spraying,which could improve the processing precision and prolong the service life of saw blade
6. Forward and backward profile butt joint without tailing,when the profile was cutting
Technical Parameters:
| Power Supply | 380V 50Hz |
| Cutting Motor Power | 3kw |
| Motor Rotary Speed | 2800r/min |
| Operation Air Pressure | 0.5-0.8mpa |
| Auto-feeding Length | 5-1000mm |
| Blade Specification | Ø450*Ø30mm*2.6 |
| Blade blade feeding speed | 0-3m/min |
| Outside Dimension | 2050*1200*1650mm(Conveyor:5400mm) |
| Weight | 780kg |
