Product Description

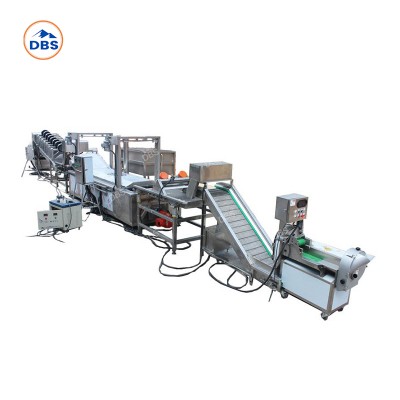

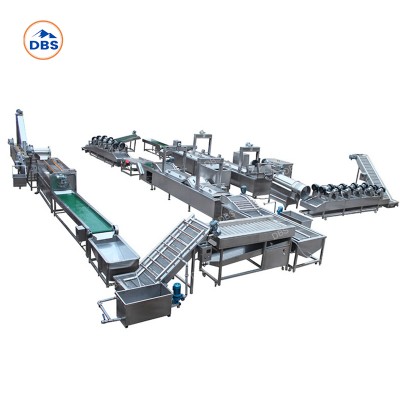

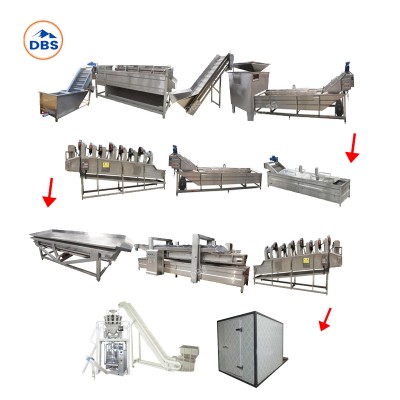

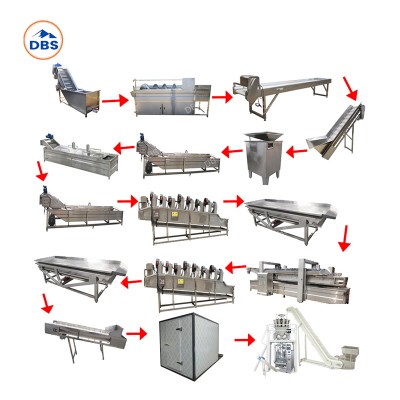

This automatic frozen french fries production line is specially designed for making frozen french fries with large output. It is a perfect production line to produce good quality frozen french fries.
Advantage
Output capacity can be customized,capacity is 300kg/h to 2000kg/h
Easy to clean, no maintenance costs
Electrical apparatus element are Schneider brand or CHINT brand.
We have engineers who can customize different solutions according to different needs
Parameter
|
Equipment |
Power |
Dimension |
|
Hoist |
0.37KW |
2500x700x2200mm |
|
Washing and peeling machine |
2.75KW |
2835x700x1460mm |
|
Picking line |
0.37KW |
3000x1100x1100mm |
|
Hoist |
0.37KW |
1700x700x1600mm |
|
Potato Cutting Machine |
0.75KW |
745x590x1385mm |
|
Blanching Machine |
54.37KW |
4000*1000*1200mm |
|
Vibration Dewatering Machine |
6.00KW |
4000*950*1600mm |
|
Frying Machine |
120KW |
5000*1350*2250mm |
|
De-oiling Machine |
6.00KW |
4000*950*1600mm |
|
Picking Line |
0.37KW |
3000x1000x1600mm |
|
Quick Freezing Tunnel |
62.20KW |
7500 ×3800× 3700mm |
|
Packing Machine |
6.00KW |
4500*3700*3750mm |
