- Model NO.: PCSALI
- Shape: Cup-Shaped
- Item Name: Diamond Grinding Wheel
- Thread: 5/8"-11, M14
- Segment Height: 5mm
- OEM: Accept
- Type: Turbo, Single Row, Double Row etc
- Trademark: SALI
- Specification: 105/115/125/180MM
- HS Code: 8202390000
- Manufacturing Process: Welded/ Sintered
- Bonding Agent: Resin
- Arbor Hole: 16/22.23/M14
- Tooth Thickness: 20mm
- Delivery Time: 10-15 Days
- Application: Polishing Grinding&Concrete
- Technology: Cold Pressed, Hot Pressed, Laser Welding, Silver
- Transport Package: Color Inner Box and Color Outer Carton
- Origin: Zhejiang, China
Double Row Diamond Cup Grinding Wheel
1.Specification
| Shank Material | 65Mn |
| Segement | 7MM |
| Type | Turbo, Single row, double row |
| Technology | Cold pressed, hot pressed, laser welding, silver welding |
| Grit Size | 30/40,40/50, 50/60, 60/80 |
| Diamond Concentration | 20% - 30% |
| HRB | 85-105 |
Application |
Diameter |
Segment Height |
Segment Thickness(mm) |
Segment No. |
Arbor (mm) |
Single row |
105mm(4") |
5 |
7 |
8 |
M14,5/8"-11,22.23 |
115mm(4.5") |
5 |
7 |
9 |
M14,5/8"-11,22.23 |
|
125mm(5") |
5 |
7 |
10 |
M14,5/8"-11,22.23 |
|
150mm(6") |
5 |
7 |
12 |
M14,5/8"-11,22.23 |
|
180mm(7") |
5 |
7 |
14 |
M14,5/8"-11,22.23 |
Application |
Diameter |
Segment Height |
Segment Thickness(mm) |
Segment No. |
Arbor (mm) |
Double row |
105mm(4") |
5 |
7 |
16 |
M14,5/8"-11,22.23 |
115mm(4.5") |
5 |
7 |
18 |
M14,5/8"-11,22.23 |
|
125mm(5") |
5 |
7 |
20 |
M14,5/8"-11,22.23 |
|
150mm(6") |
5 |
7 |
24 |
M14,5/8"-11,22.23 |
|
180mm(7") |
5 |
7 |
28 |
M14,5/8"-11,22.23 |
Application |
Diameter |
Segment Height |
Segment Width(mm) |
Segment No. |
Arbor (mm) |
Turbo |
105mm(4") |
5 |
20 |
Turbo |
M14,5/8"-11,22.23 |
125mm(5") |
5 |
20 |
Turbo |
M14,5/8"-11,22.23 |

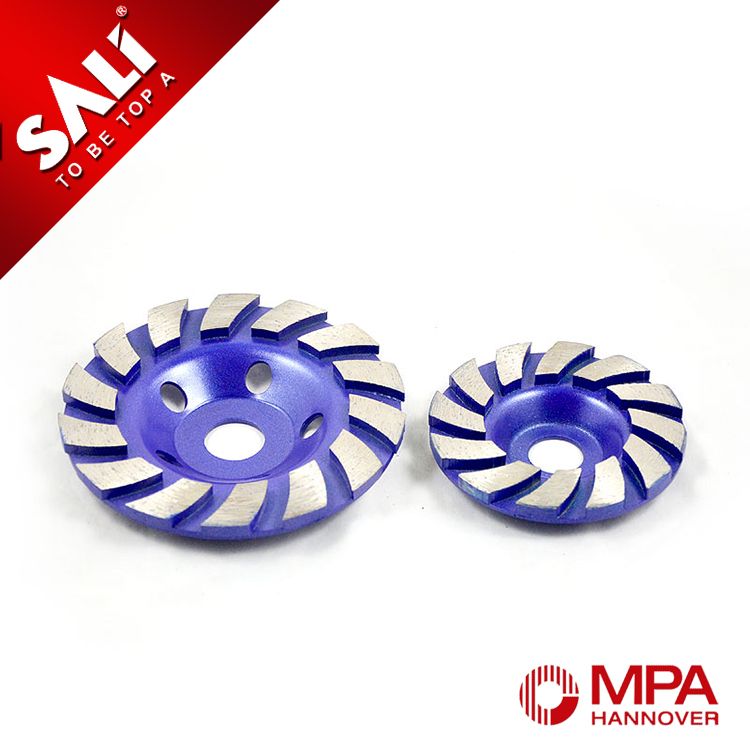

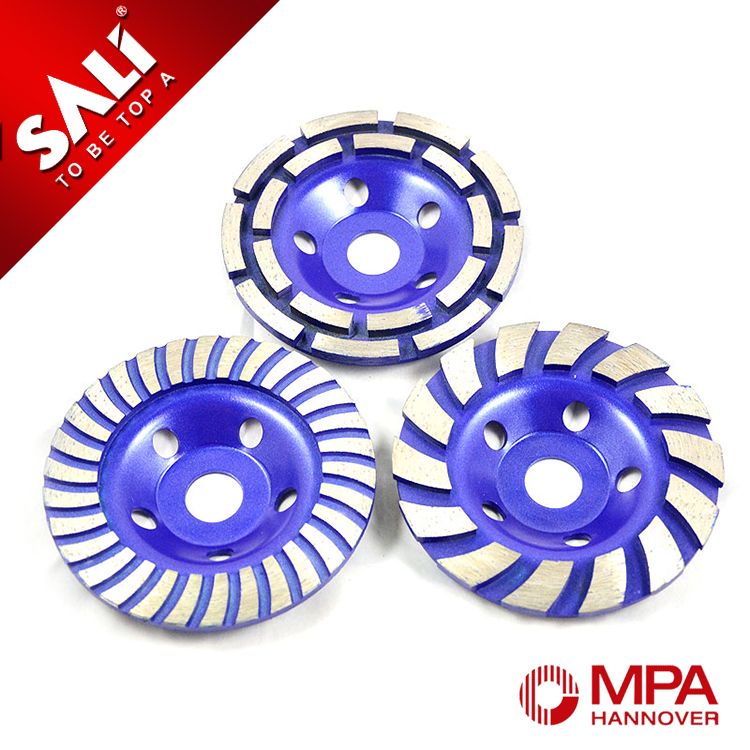

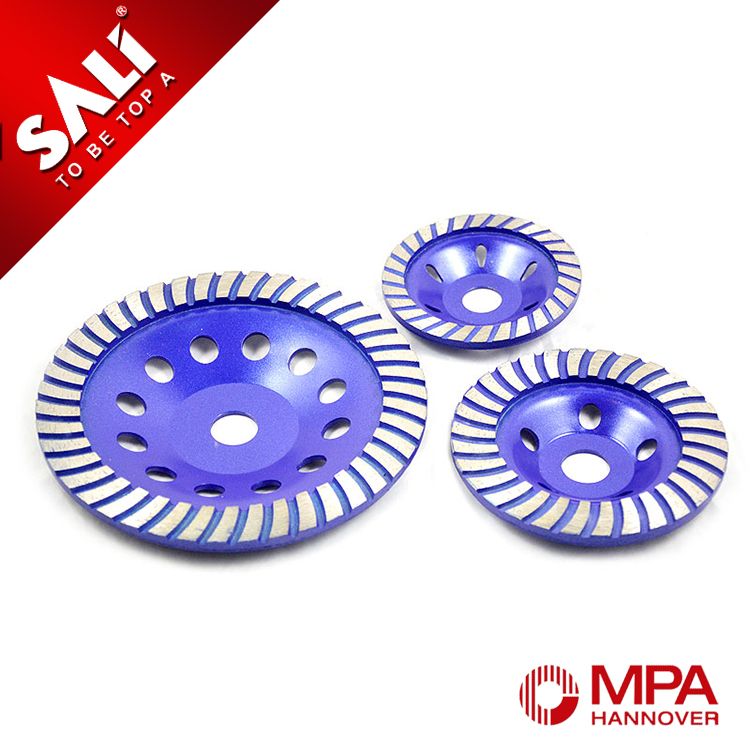

2.Picture of products
3.Applycation:
Used for grinding marble, granite, stone, ceramic, concrete, asphalt, brick
4.Others
5.FAQ
1)How many wide of segment for diamond stone grinding wheels?
-7mm, 10mm can be made
2)Can we use our own logo design?
-Yes, you can. Please send an email to salesman and tell more details about the logo, sticker, packing etc.
3)Do you have inspection procedure for:
-Incoming -In-Process -100% self-inspection before packing? Yes, we have.
4)What certificates do your products have?
-ISO9001, MAP (EN12413).
5)Do you have stock?
-Yes, we have the stock with our SALI brand.
6)Can we mix the 20ft container?
-Yes, you can mix it.
7)What is the delivery time?
-25 working days for 1 container order.
8)What is your payment?
-We can accept T/T, 30% deposit and 70% balance before shipping.
9)Can we use our own packing design?
-Yes, you can.
10)Can we use our own shipping agent?
-Yes, you can.
11)Your port of shipment?
-Ningbo or Shanghai.
