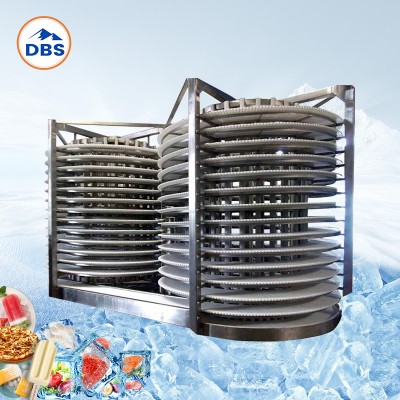

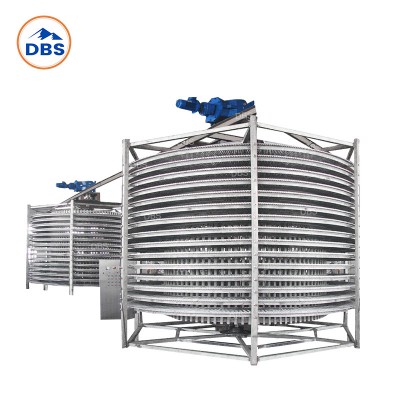

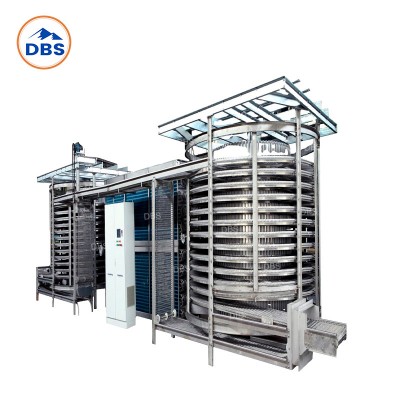

Double Drum Spiral Freezer
$75000.00 /Set
Product Details
Transaction Comments
This model uses two rotary drum left and right spiral operation structure, increases the amount of freezing, and the volume is relatively small, more reflects the spiral quick-freezing machine compact structure, small area advanteges.
|
Capacity(kg/h) |
Size(mm) |
Heat Preservation Layer Thickness(mm) |
Power(kw) |
|
500 |
13500*4300*3000 |
120 |
23.5 |
| 750 |
13900*4700*3000 |
120 | 30 |
| 1000 |
15500*5300*3000 |
120 | 32 |
| 1500 |
16000*6000*3200 |
120 | 38 |
| 2000 |
16700*6000*4000 |
120 | 45 |
| 2500 |
17300*6000*4800 |
120 | 52 |
| 3000 |
17300*6000*5200 |
120 | 56 |
