400 X 3.0 X 32mm HSS M2 Circular Saw Blade for Cutting Metal
$99.99 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: 400x 3.0 x 32mm
- Tooth Form: Bw/Hz/a/Aw
- Function: Cutting
- Coating: Nitride Saw Blade
- HRC: HRC62-65
- Material: HSS M2/HSS M35
- Trademark: Sharp Cut
- Specification: 400 x 3.0 x 32mm
- HS Code: 82023990
- Certification: ISO9001:2008, ISO9001:2000, RoHS, SGS, CE
- Diameter: 400mm
- Shape: Circular Saw Blade
- Type: HSS Saw Blade
- Appllication: Metal Cutting
- Delivery Time: 4-6 Weeks After Order
- Transport Package: 10PCS Per Carton
- Origin: China
Product Description
Product Names: Saw Blade/HSS Saw Blade/Cold Saw Blade/HSS Dmo5 Saw Blade/Blade/Circular Saw Blade| Dimension | Tooth number | Coating. | Stock |
| 250x2.0x32mm | Z=180/200/220/240/260 | TIN/TICN/TIALN/PLUS | Ready stock. |
| 275x2.5x32mm | Z=180/200/220/240/260 | ||
| 300x2.5x32mm | Z=180/200/220/240/260 | ||
| 315x2.5x32mm | Z=180/200/220/240/260 | ||
| 350x2.5x32mm | Z=180/200/220/240/260 | ||
| 370x2.5x32mm | Z=180/200/220 | ||
| 400x3.0x32mm | Z=160/200/220 | ||
| 425x3.0x32mm | Z=160/180/200 | ||
| 450x3.0x32mm | Z=120/160/180/200 | ||
| 500x4.0x32mm | Z=80/100/120/160 |

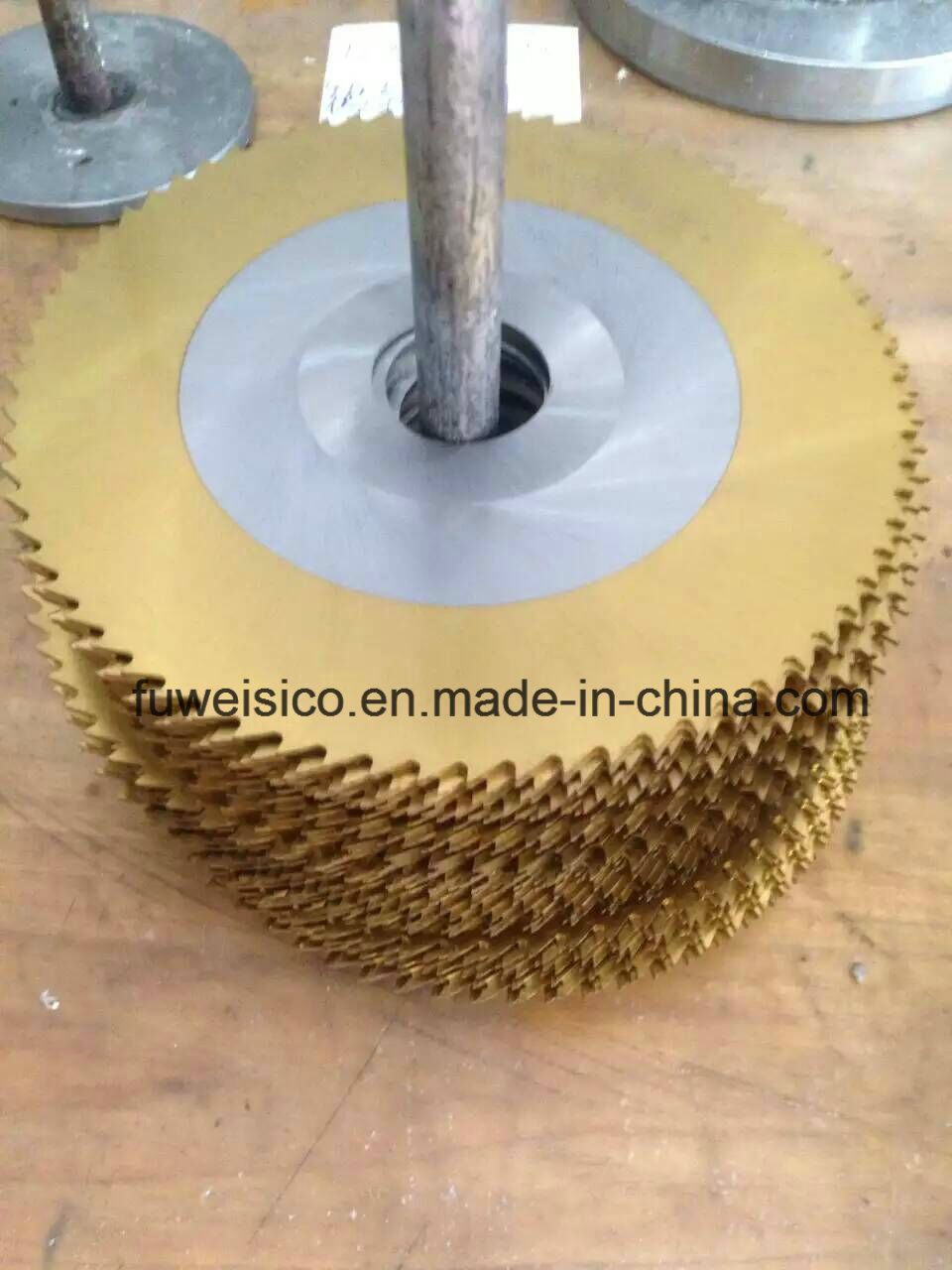

Technical data ot TiN coating:
Colour: Gold
Process: PVD
Hardness: 2500HV
Friction: 0.4
Thickness: 1-4mm.
Max cutting temperature: 600 degree.
Operation:
Structural steel
Alloyed steels
Steel pipes and profiles
Pipes and profiles out non ferrous metals
Technical recommendation:
Raising of the coating hardness by reducing the friction
Universal coating for better sawblade life
50-100%higher speed and feed rates
Prevention of side pick-UPS
Production is based on DIN standards 1836, 1837, 1838 and 1840, extended by the refined "FUWEISI " manufacturing standards. The delivery program consists of a range of standard sawblades which can be delivered from stock and a range of special sawblades to be produced to customer specifications.
The HSS Steam-treated sawblades are supplied as standard in high speed steel grade M2 = DIN 1.3343.

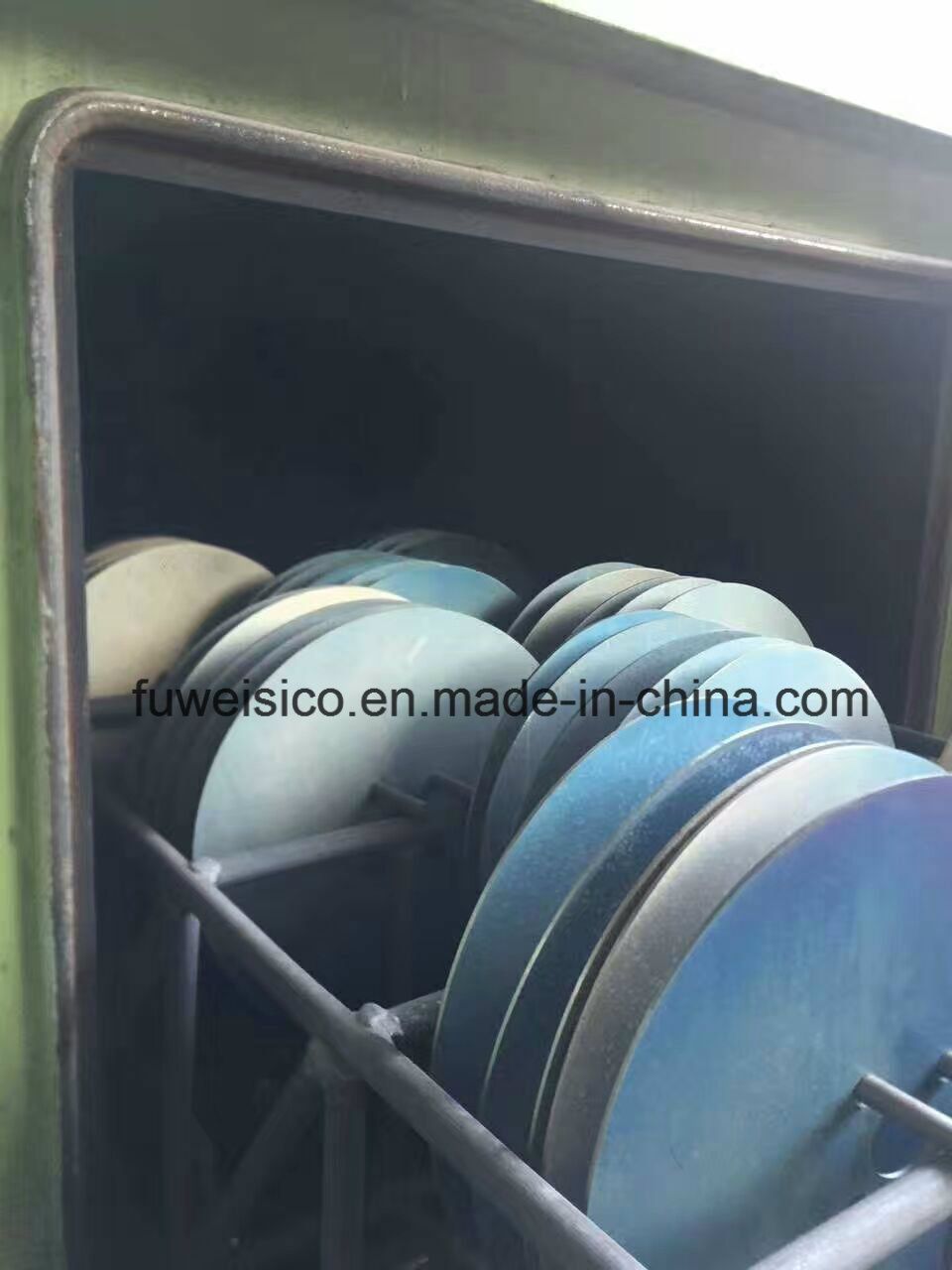

This is currently the most common surface treatment for circular saw blades. It is not a PVD treatment, but controlled oxidation that produces a layer of iron oxide (Fe3O4) on the surface, which increases the self-lubricating capability of the blade. It is used for general cutting work, except for aluminium, copper, brass and their alloys due to the chemical incompatibility which sometimes occurs.
All the products haven been enjoying an excellent reputation in the world market for it's competitive price and excellent quality.
