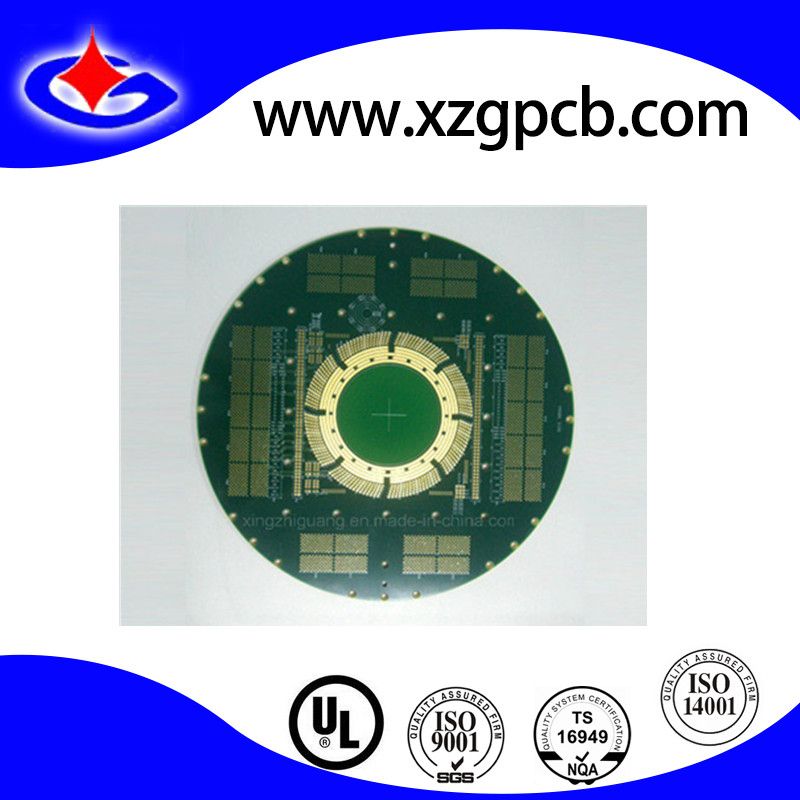

12 Layer 3/3mil IC Test PCB Circuit
$0.50 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: WBPN2245AO
- Dielectric: FR-4
- Flame Retardant Properties: V0
- Processing Technology: Electrolytic Foil
- Insulation Materials: Epoxy Resin
- Brand: Xzg
- Min Line Width and Distance: 3/3mil
- Solder Mask Colour: Green
- Trademark: XZG
- Specification: IPC-Class 2
- HS Code: 8534009000
- Type: Rigid Circuit Board
- Material: Fiberglass Epoxy
- Mechanical Rigid: Rigid
- Base Material: Copper
- Model: PCB
- Panel Size: 50*50mm
- Min Hole Size: 0.2mm
- Silkscreen Colour: White
- Transport Package: Vaccume Package
- Origin: Guangdong, China
Product Description
Specification:
| Layer | 12 |
| Material | FR4-TG180 |
| Board Thickness | 2.0mm |
| Copper Thickness | 1oz |
| Soldermask | Green |
| Silkscreen | White |
| Surface Finishing | ENIG |
| Min Hole Size | 0.2mm |
Why US:
- UL (E246887), ISO9001, TS16949, ISO 14001 certified.
- Turnover USD 50-100 million per year
- 25,000 sqm area,1100 staff
- Mass Production from single to 20 layers
- Special Material: ROGERS, Arlon, Taconic.etc.
- Client: SAMSUNG, Skyworth, Malata, Midea.etc.
Capability & Lead Time:
Certificates(UL:E246887, TS16949, ISO14001, ISO9001):
Clients and Suppliers:
FAQ:
Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.
Q2:What kind of PCB file you need before production
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)
Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.
Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
