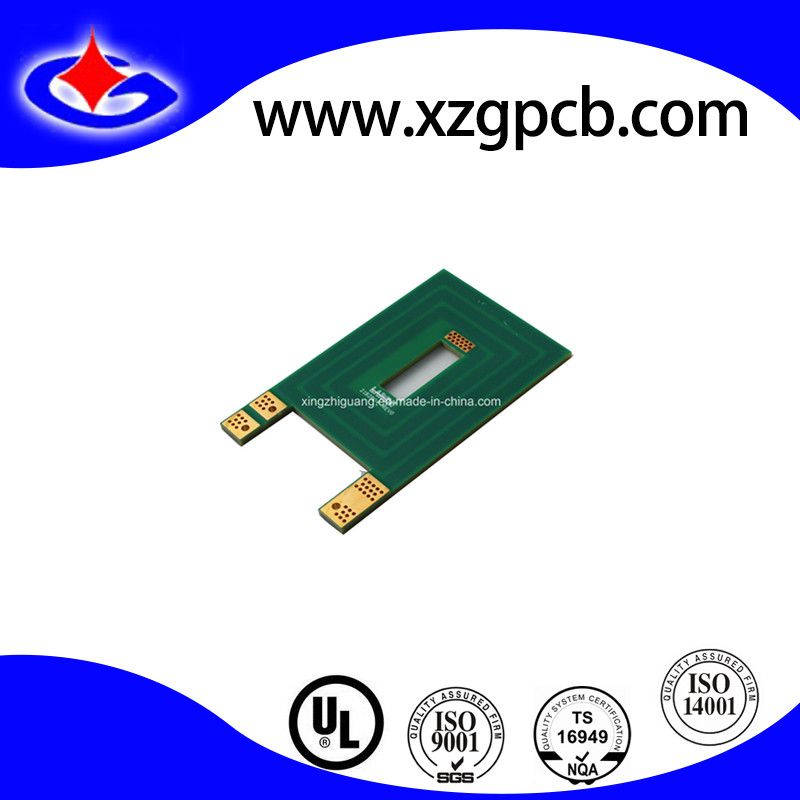

10-Layer Multilayer 3oz PCB for Power Supply
$0.15 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: M10C14265
- Dielectric: FR-4
- Flame Retardant Properties: V0
- Processing Technology: Electrolytic Foil
- Insulation Materials: Epoxy Resin
- Brand: Xzg
- Board Thickness: 3.6mm
- Surface Finishing: Lead Free Hal+Enig
- Silkscreen: White
- Min Hole Size: 0.4mm
- Transport Package: Vacunm Packing
- Origin: Huizhou
- Type: Rigid Circuit Board
- Material: Rogers 4535
- Mechanical Rigid: Rigid
- Base Material: Copper
- Model: FR-4
- Tg Value: Tg180
- Copper Thickness: 3oz
- Soldermask: Green
- Min Line W/S: 4/4 Mil
- Trademark: XZG
- Specification: CE, RoHS, SGS
- HS Code: 8534009000
Product Description
Specification:
| Layer | 10 |
| Material | FR4-TG 180 |
| Board Thickness | 1.6mm |
| Copper Thickness | 3oz |
| Soldermask | Green |
| Silkscreen | White |
| Surface Finishing | Lead Free HAL+ENIG |
| Min Line Width/Space | 4/4 mil |
| Min Hole Size | 0.4mm |
Capability:
Lead Time:
Why US:
- UL (E246887), ISO9001, TS16949, ISO 14001 certified.
- Turnover USD 50-100 million per year
- 25,000 sqm area,1100 staff
- Produce from single to 20 layers
- Special Material: ROGERS, Arlon, Taconic.etc.
FAQ:
Q: Files needed for quotation or place order?
A: a. Gerber File
b. Dimensional Specifications
c. BOM List (only for PCBA)
Q: How long will you get our quotation?
A: After all files were sent, 2 to 8 hours as per your file.
Q: How to find us?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
